Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-17
Theory of Operation
Media Handling

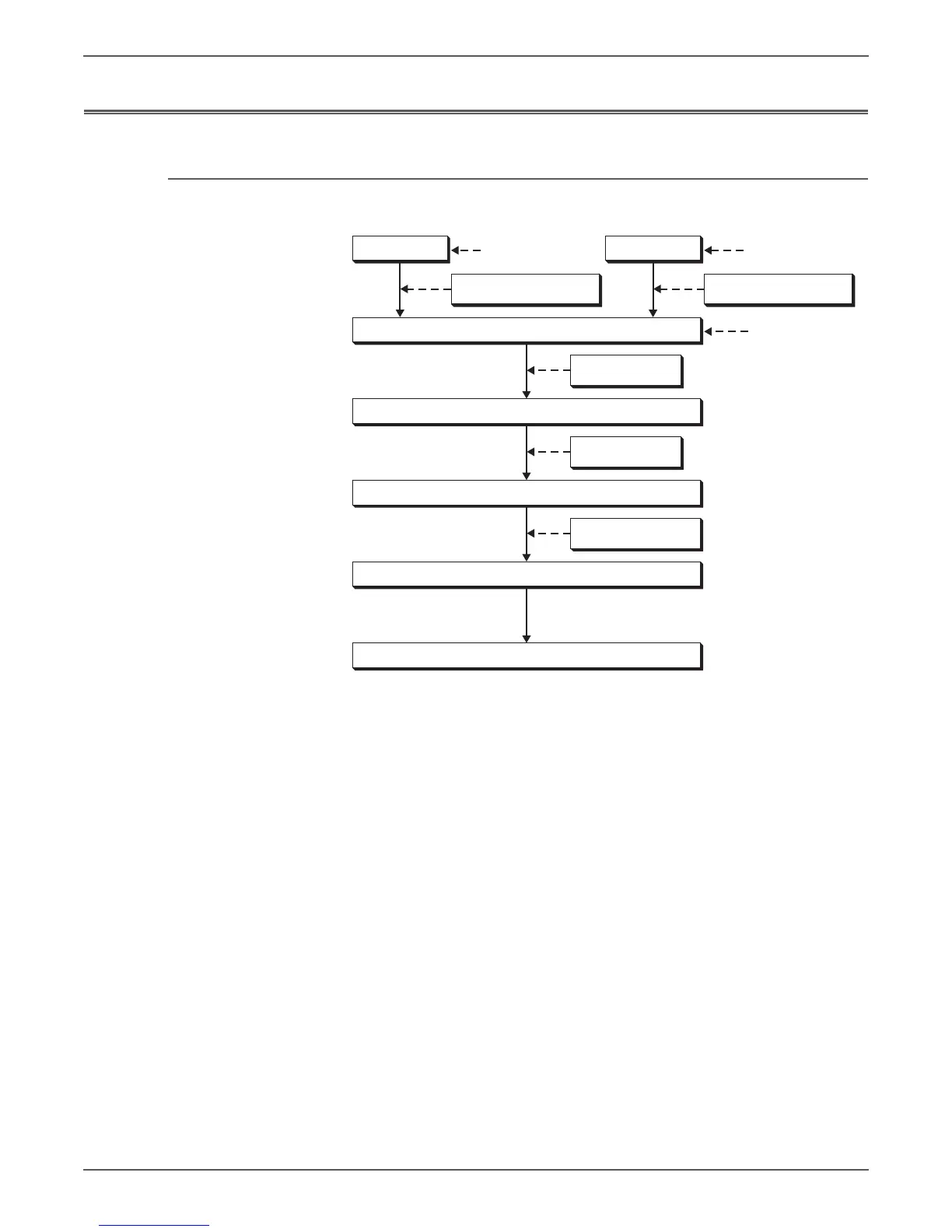

Media Path
Multiple Sheet Feed
Prevention
Registration Assembly
IBT Belt Assembly
Fuser Assembly
Exit Roller in the Fuser Assembly
Top Cover
Bypass
Motor Drive / Solenoid /
Feed Roller
Multiple Sheet Feed
Prevention
Main
Motor Drive / Solenoid /
Feed Roller
Motor Drive / Clutch /
Registration Roller
Motor Drive / Belt /
2nd BTR
Motor Drive / Heat Roller /
Pressure Belt
Leading Edge
Registration
s6000-079

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
