•Back Up Roller
Helps the toner particles migrate onto the transfer belt by retaining the belt at
a position where it nearly contacts the print media during the second transfer
process. See “Secondary Transfer” on page 2-12.
•Cleaning Blade
Scrapes off the excess toner remaining on the transfer belt.

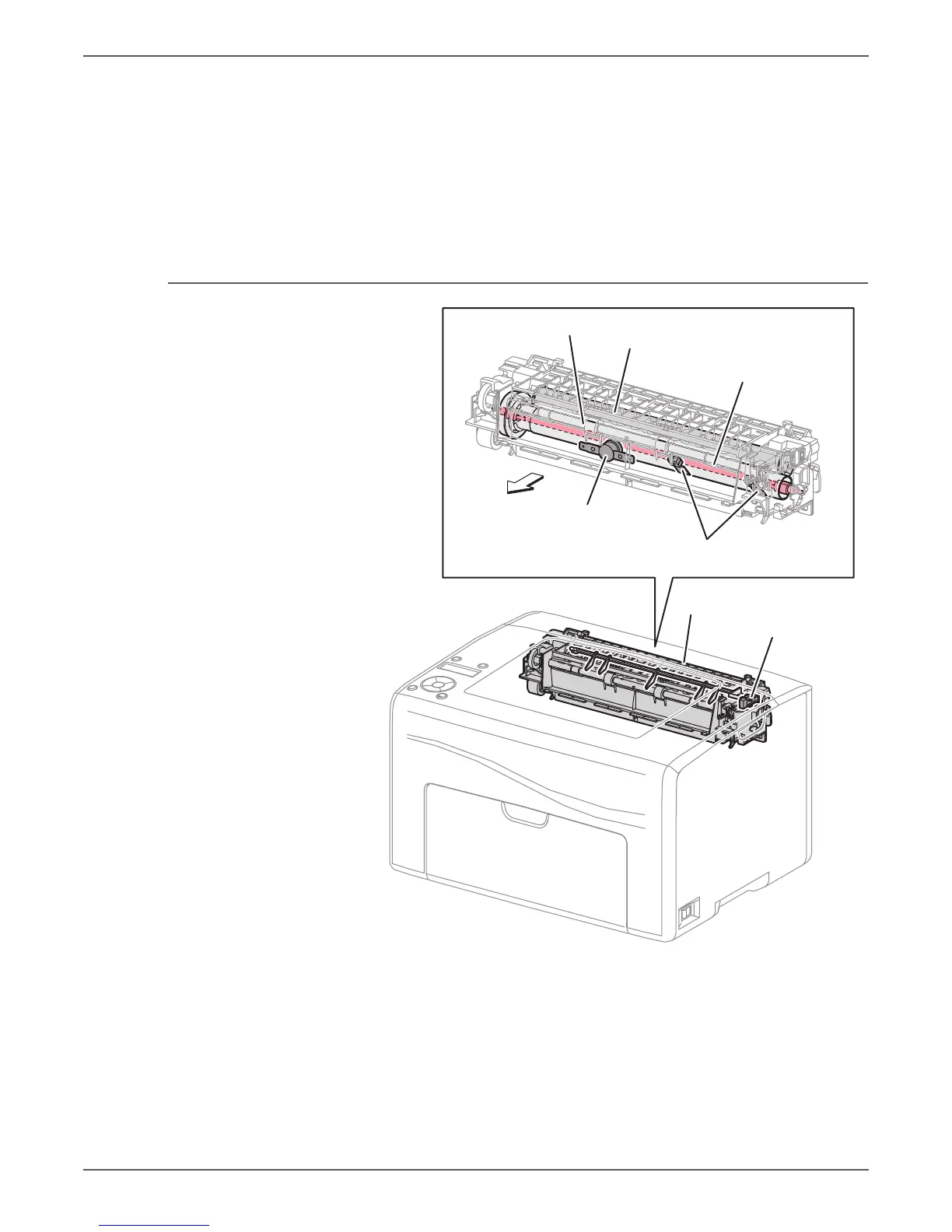

Fuser & Exit
Fuser Exit Sensor
Fuser
Temperature Sensor
(Contact Type)
Thermostat
Heat Roller
Pressure Belt
Heater Lamp
s6000-105
Front
