8-34 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
WorkCentre 6015 MFP Front Cover
PL1.1.38
Includes PL1.1.18, PL1.1.35, and PL1.1.36.
1. Remove the Main Paper Tray Cover (page 8-29).
2. Lift the Scanner.
3. Remove the Output Tray Extension (page 8-31).
4. Open the Toner Door.

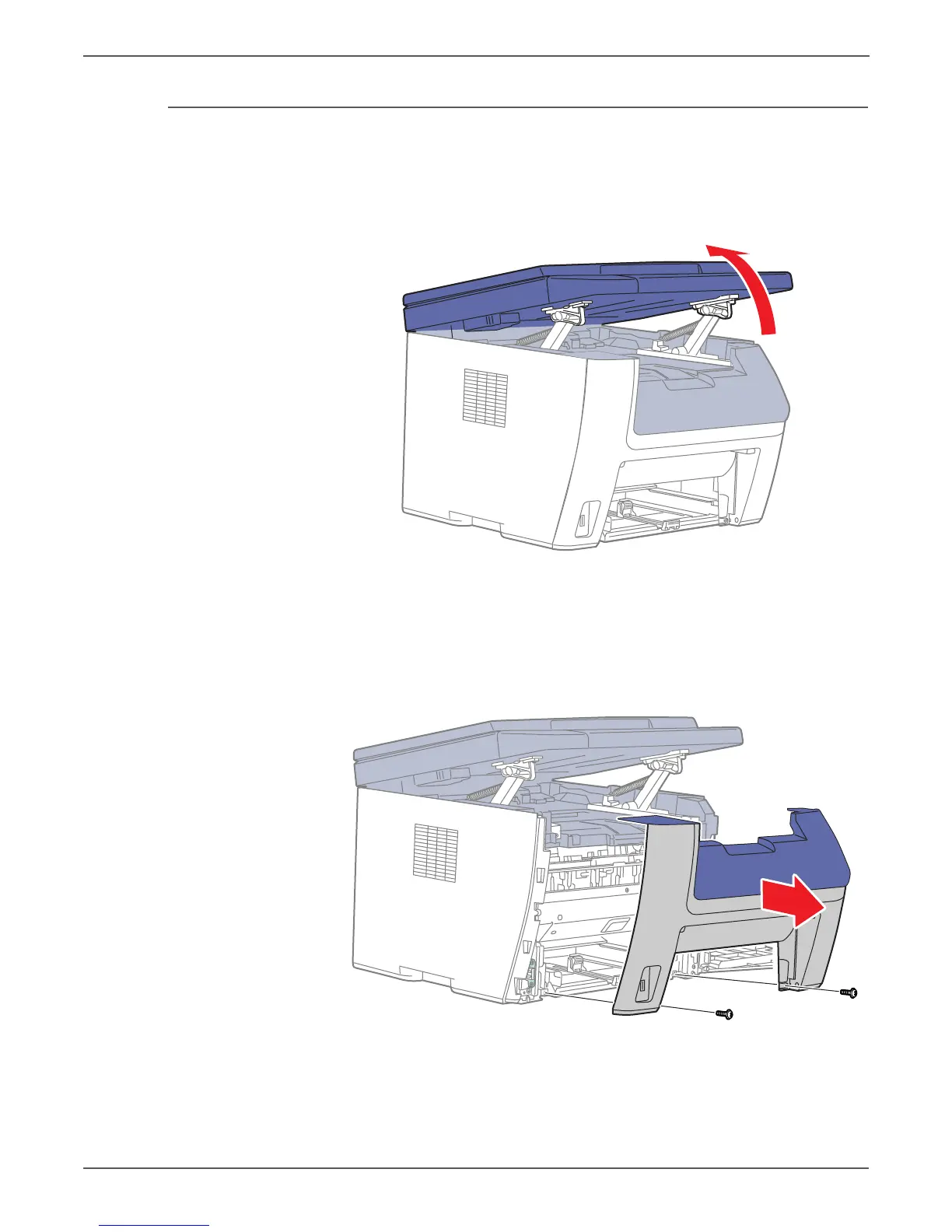

5. Remove 2 screws (silver, tap, 8 mm). Refer to the following illustration.
6. Starting on the right side, release the hooks and remove the Front Cover.
To Next Page
