Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-39
Theory of Operation
Drive Assemblies
Major Functions
• Main Drive Assembly
A motor for driving components such as MU Drive Assembly, Feed Drive
Assembly, and the Fuser.
• Developer Drive Assembly
An assembly to relay torque from the Main Drive Assembly to the MU Drive
Assembly.
Contains the Switching Solenoid and the Switching Sensor.
• Switching Sensor
Detects whether the printer is running in the full color mode or the B/W
mode based on the position of the actuator. (Full Color mode: Sensor
beam is received)
• Switching Solenoid
Switches between the full color mode and the B/W mode by
disconnecting the imaging units for Yellow, Magenta, and Cyan from the
torque from the Main Drive Assembly in the B/W mode. See “Full Color
Mode and B/W Mode” on page 2-40.
•Feed Drive Assembly
An assembly that rotates the Paper Feed and Registration Roller by the torque
from the Main Drive Assembly.
•MU Drive Assembly
An assembly that rotates the transfer belt, drums (YMCK), and the augers and
magnet rolls in the Developer Drive Assembly by the torque from the Main
Drive Assembly.

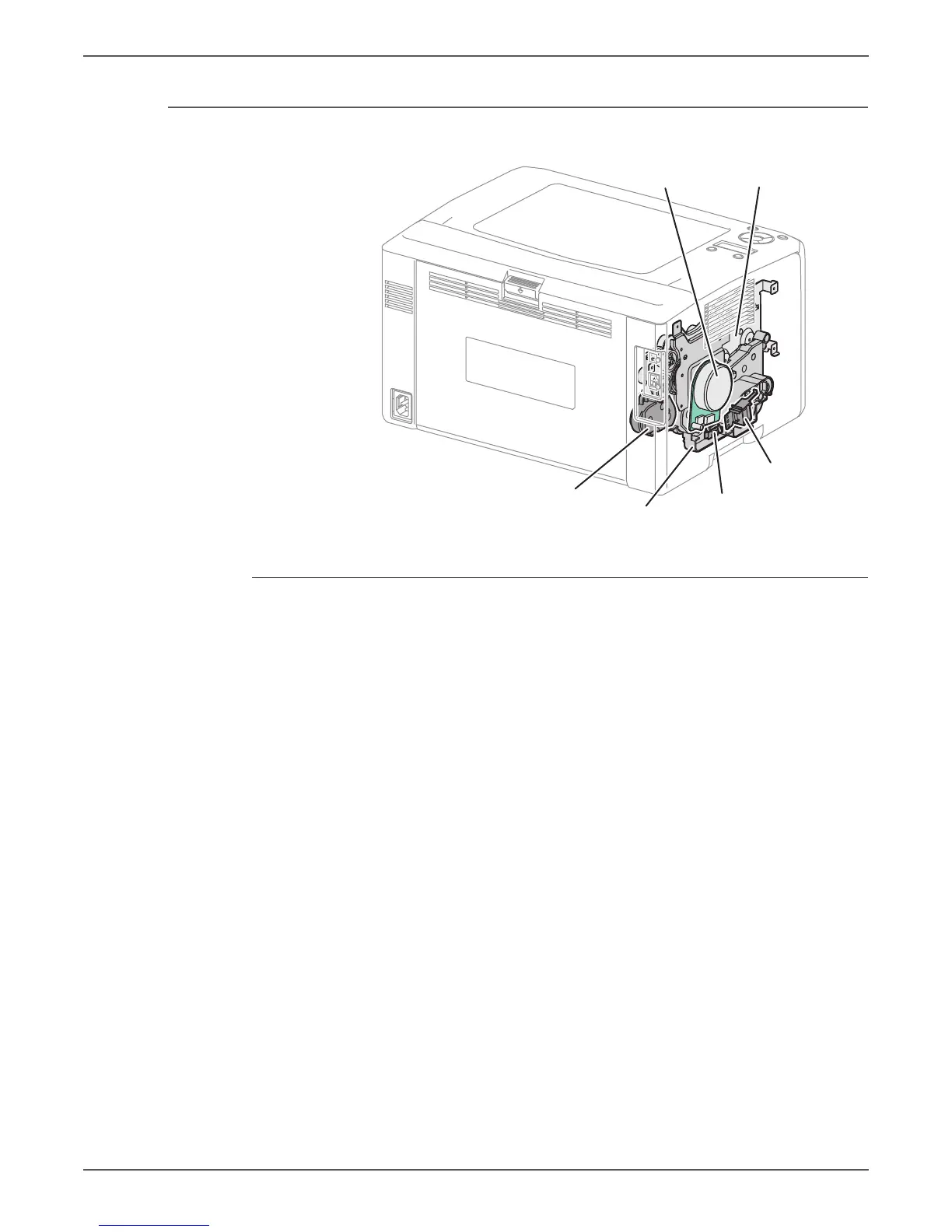

Main Drive
MU Drive Assembly
Drive Gear Assembly
Developer Drive Assembly
Switching Sensor
Switching Solenoid
s6000-106

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
