Xerox PHASER 6010 Service Manual

2-40 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Full Color Mode and B/W Mode
The Full Color mode uses the four colors of Y, M, C, and K. The B/W mode uses K
only.
To deactivate the components for Y, M, and C during B/W operation, the torque
transmission route is changed between the Full Color and B/W modes.

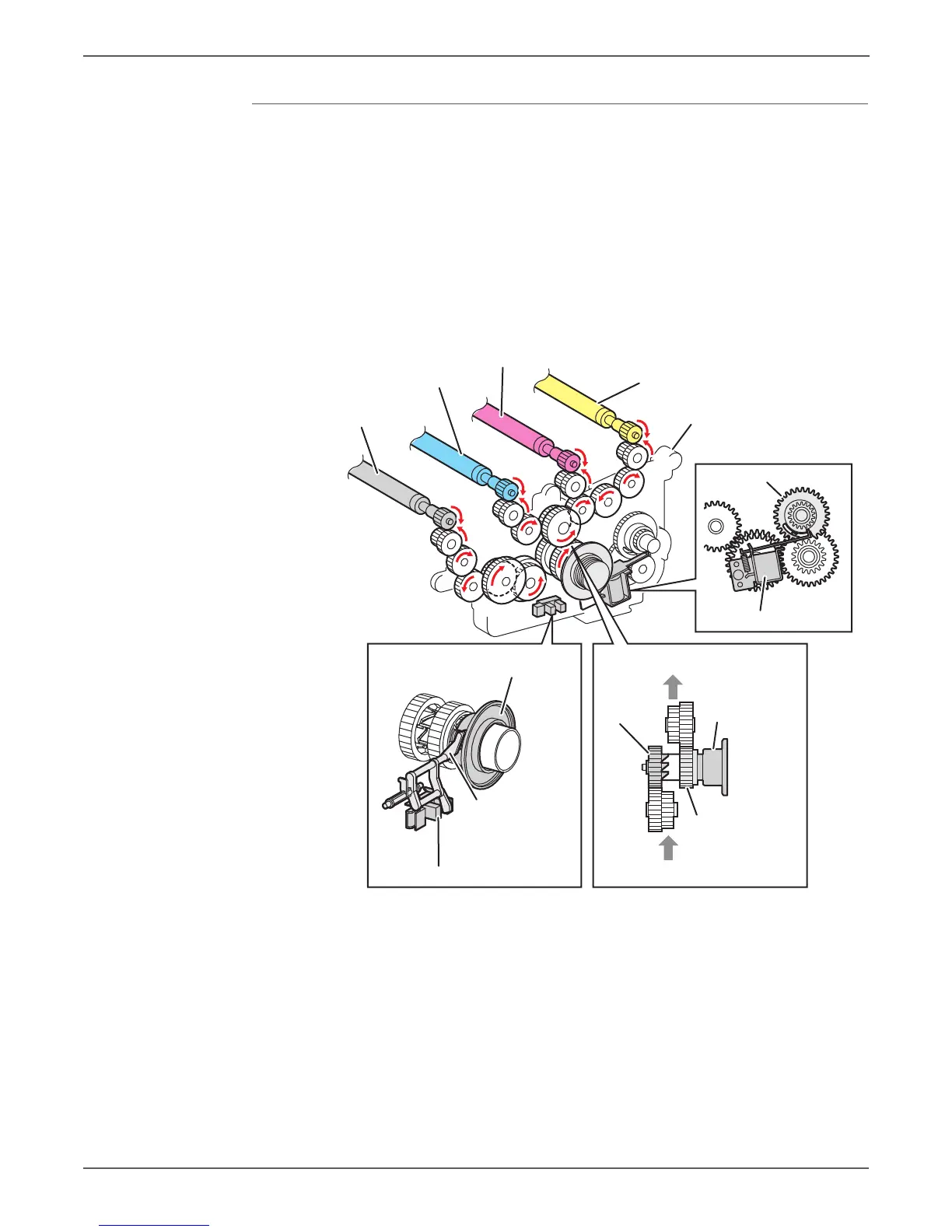

•Operation in Full Color mode
In the Full Color mode, the magnet rollers for YMCK rotate to form a full-color
visible toner image. The magnet rollers are driven by torque from the Main
Drive Assembly.
Magnet Roller (K)
Gear C
Flange D4
Gear D4 In
Gear D4 Out
Drive From Main Drive
Drive To Magnet Roller (Y), (M), (C)
Magnet Roller (C)
Magnet Roller (M)
Magnet Roller (Y)
Flange D4
Actuator K
(Full Color Mode
Position)
Switching Sensor
Switching Solenoid
Developer Drive
s6000-107

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
