Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-11
Theory of Operation
Drum Cleaning
During cleaning, excess toner and charge is removed from the drum and BCR.
• Drum cleaning
The excess toner that was not transferred to the transfer belt in the “Primary
Transfer” process remains on the drum surface. To prevent the excess toner
from causing troubles in the subsequent processes, the toner is scraped off by
the cleaning blade in contact with the drum surface, and then is collected into
the waste toner bottle (see “Waste Toner Collection” on page 2-16).
•BCR cleaning
The excess toner remaining on the BCR surface is wiped off by the cleaning
roller made of spongy material, and then is collected into the waste toner
bottle (see “Waste Toner Collection” on page 2-16).

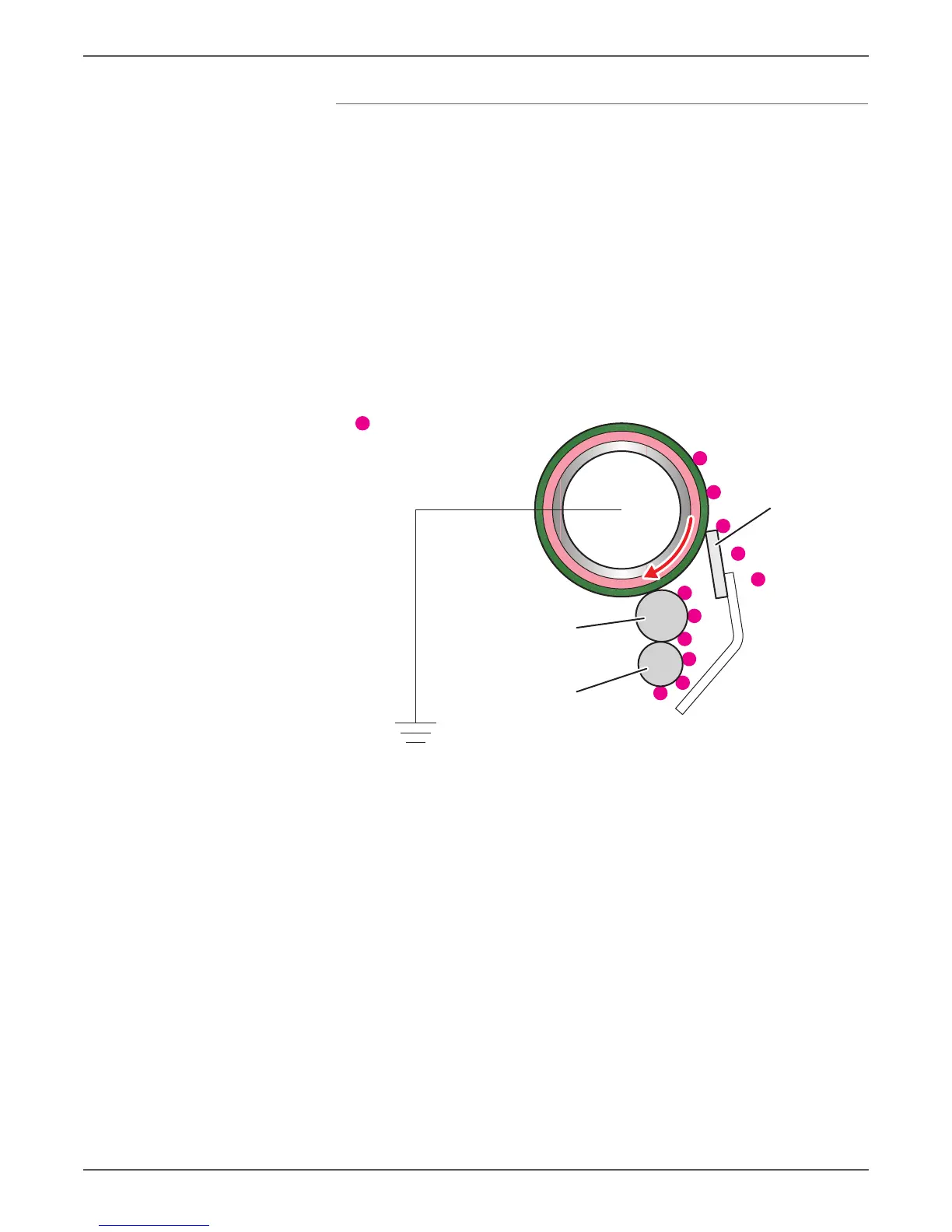

s6000-061
: Toner
Cleaning Blade
Drum
BCR
Cleaning Roller
