Xerox PHASER 6010 Service Manual

2-12 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

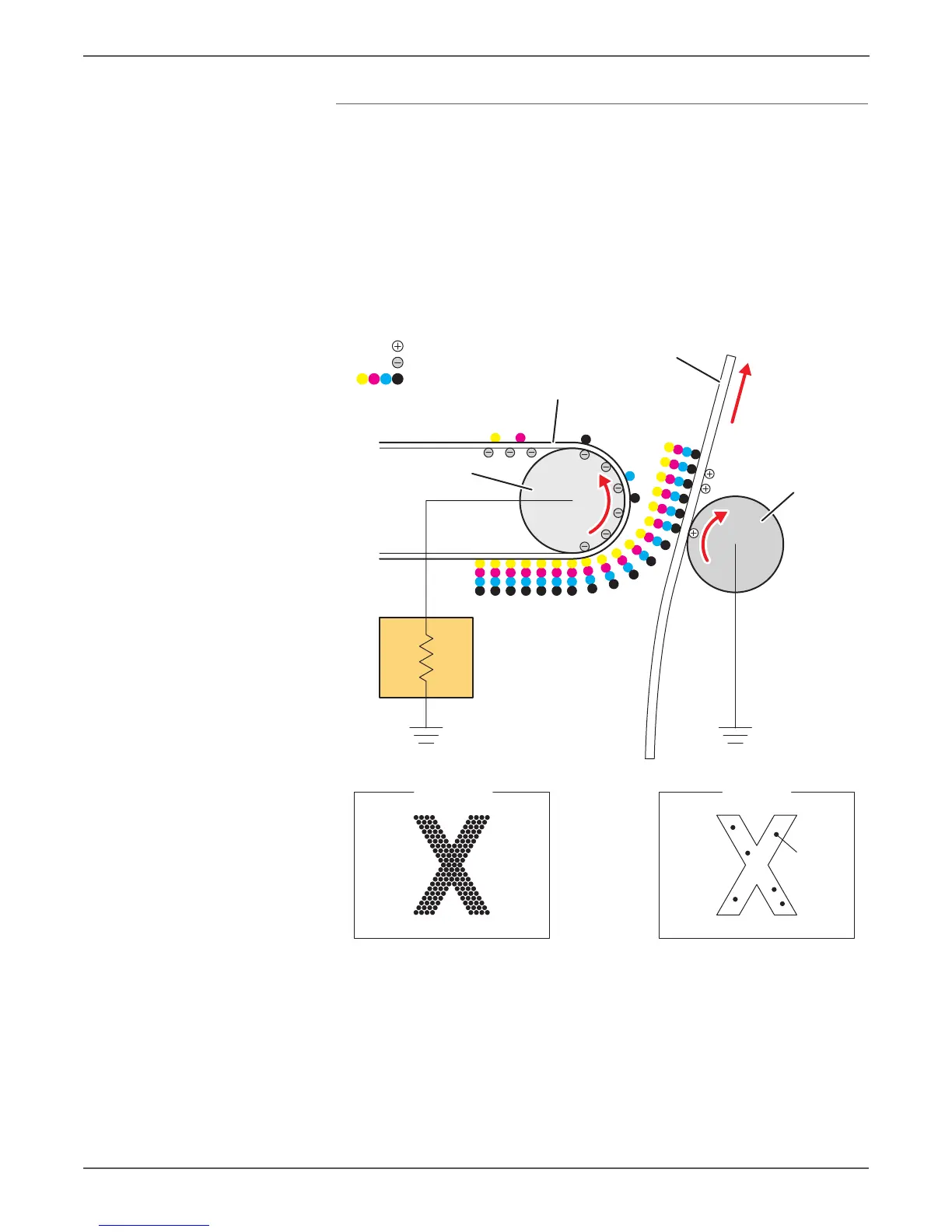

Secondary Transfer
In the secondary transfer process, the toner image completed on the surface of
the transfer belt is transferred onto the print medium using the Transfer Roller. The
print medium passes between the Transfer Roller and the transfer belt that runs in
contact with the conductive roller (back up roller).
The toner image on the transfer belt moves onto the print medium due to the
attracting force generated between the back up roller negatively charged by the
HVPS and the Transfer Roller grounded and positively polarized.
HVPS
s6000-062
Paper
2nd BTR
Belt
Back Up Roller
Belt SurfaceDrum Surface
Excess
Toner
: Negative electric charge
: Positive electric charge
: Toner

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
