Xerox PHASER 6010 Service Manual

2-18 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

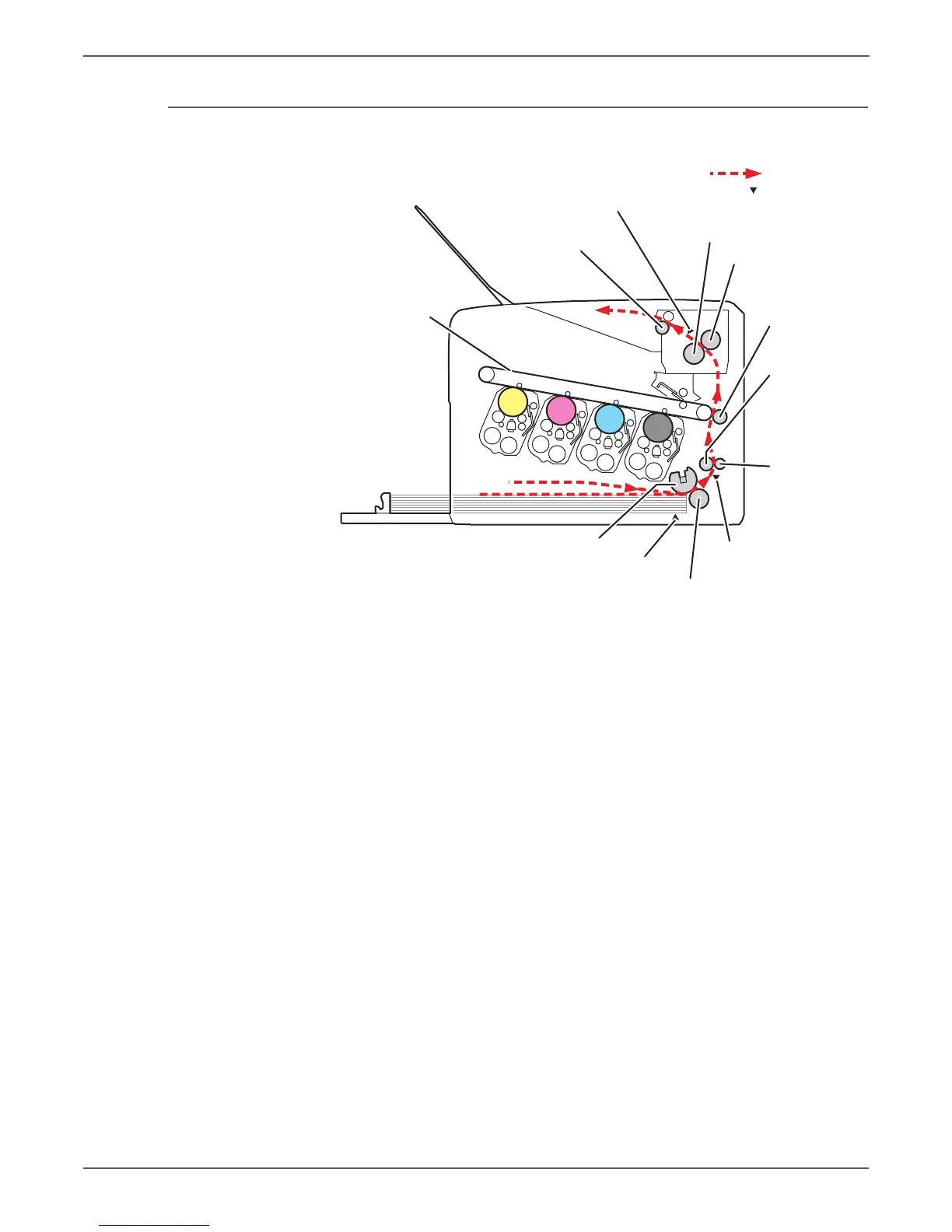

Media Path Components
Y
M
C
K
: Paper Transfer
: Paper Sensors
Exit Roll [Fuser Assy]
Heat Roll [Fuser Assy]
Pressure Belt [Fuser Assy]
Exit Sensor [Fuser Assy]
Transfer Roller
Rubber
Registration
Roller
[Regi Assy]
Registration
Pinch Roller
[Regi Assy]
Registration Sensor
[Regi Assy]
Separator Roller
No Paper Sensor
Feed Roller
s6000-080
Transfer Belt
[Belt Assy IBT]

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
