Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 5-19
Image Quality

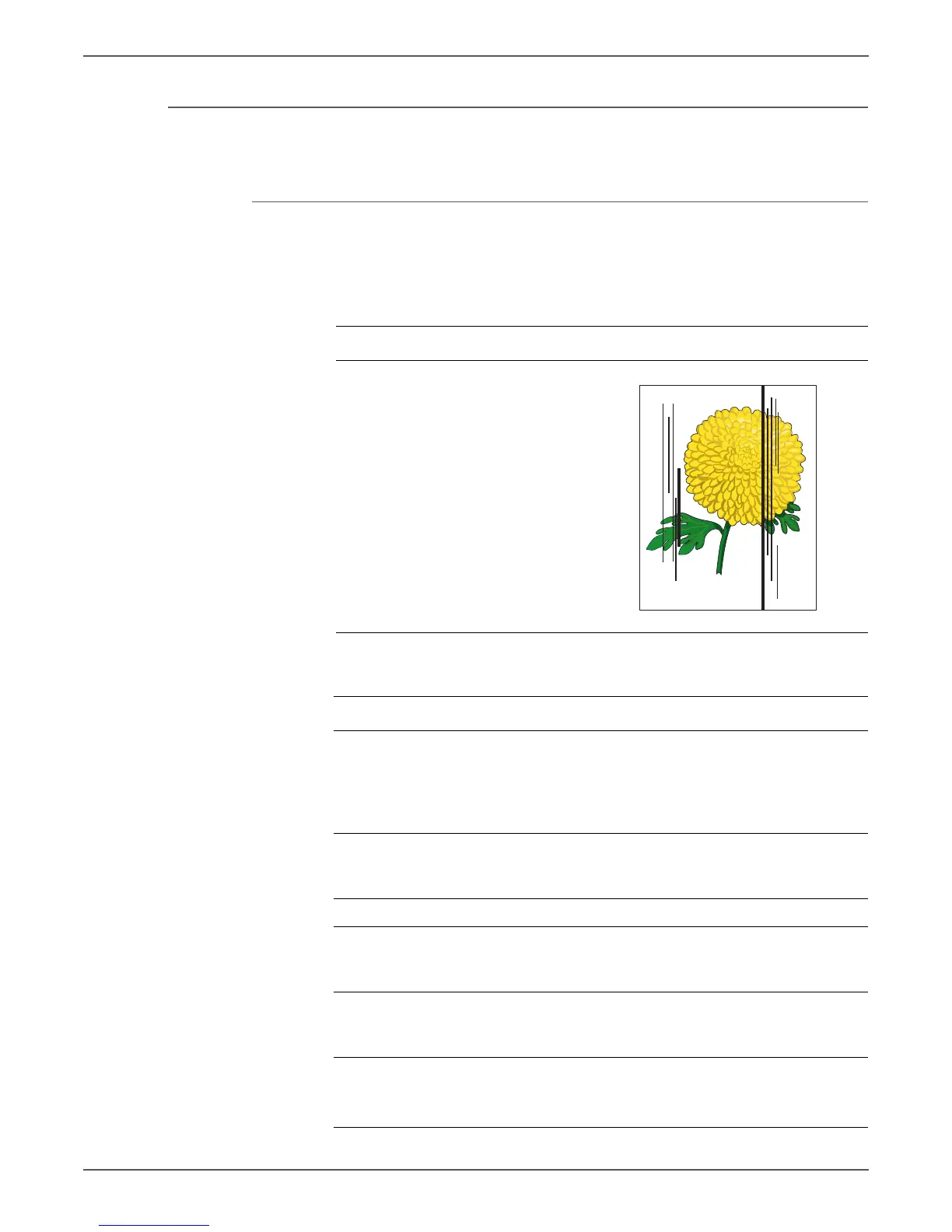

Streaks
Streaks appear on the output.
Initial Actions
• Check the paper transfer path.
• Ensure there is no debris on the transfer path.
Troubleshooting Reference Table
Applicable Parts Example Print
■ Transfer Roller, PL1.1.9
■ Fuser, PL5.1.1
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Clean the LED windows and the
inside of the printer. See “Cleaning”
on page 7-3 and “Maintenance” on
page 7-8.
Does the image print correctly?
Complete. Go to step 2.
2 Check the paper being used.
Is it approved paper?
Go to step 4. Load supported
media, then go
to step 3.
3 Does the image print correctly? Complete. Go to step 4.
4 Reseat and lock the Toner
Cartridges.
Does the image print correctly?
Complete. Go to step 5.
5 Replace the Transfer Roller
(page 8-14).
Does the image print correctly?
Complete. Go to step 6.
6 Replace the Fuser (page 8-80).
Warning: Allow the Fuser to cool
before replacing.
Complete.
Vertical Stripes

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
