Xerox PHASER 6010 Service Manual

2-30 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

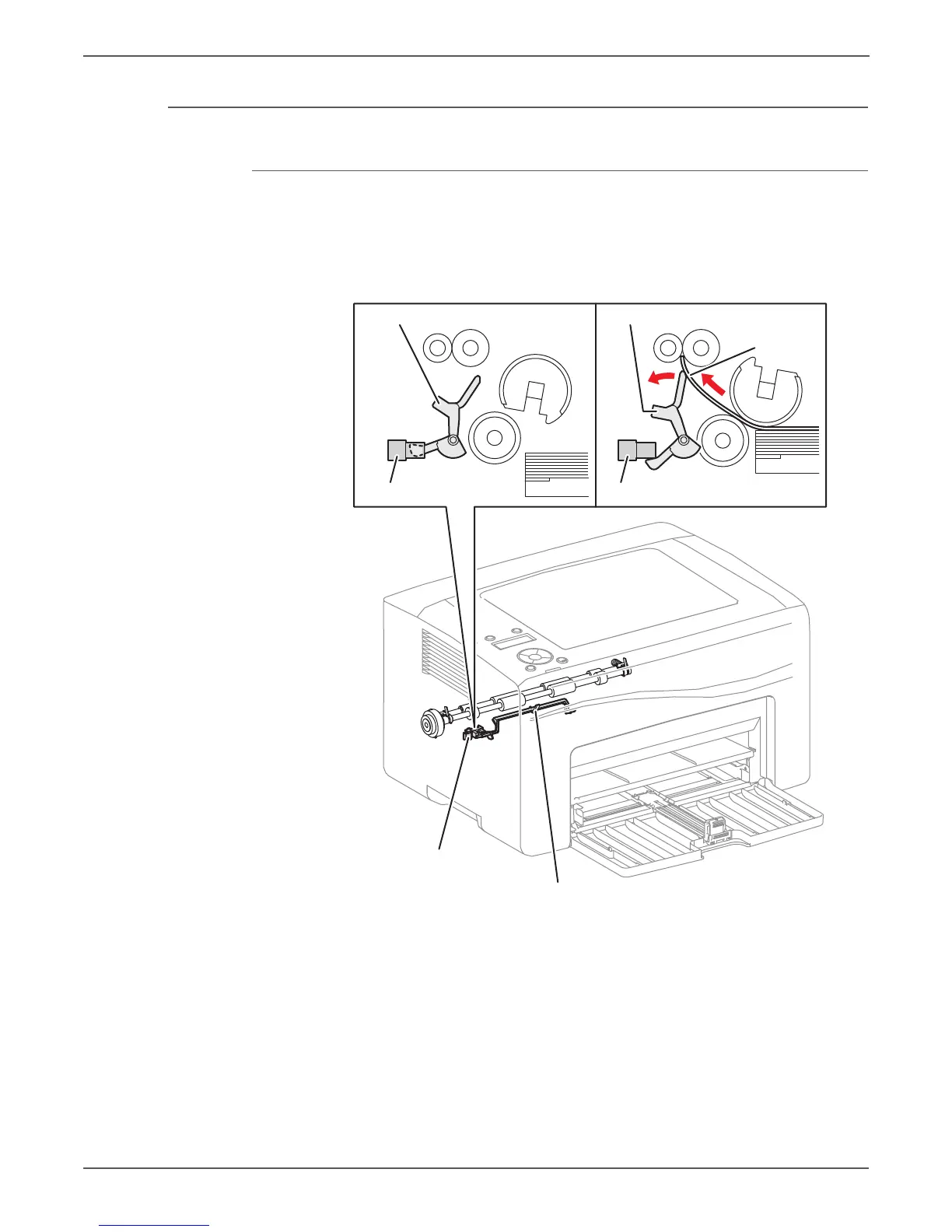

Registration Assembly
Major Functions
• Registration Sensor
The Registration Sensor detects that the leading edge of the print medium
has reached the registration section. No paper: sensor beam is blocked.
• Registration Clutch
The Registration Clutch transmits the driving torque from the Main Drive
Assembly to the Registration Roller to feed the sheet from the Main Paper
Tray, or Bypass Tray, to the Fuser. See “Main Drive Assembly” on page 2-68.
s6000-088
Registration Sensor
Registration Actuator
Registration Actuator (No Paper Position)
Registration Sensor
Registration Sensor
Registration Actuator
Paper

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
