Xerox PHASER 6010 - Phaser 6000;6010 Rear Door

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-13
Service Parts Disassembly
Phaser 6000/6010 Rear Door
PL1.1.6

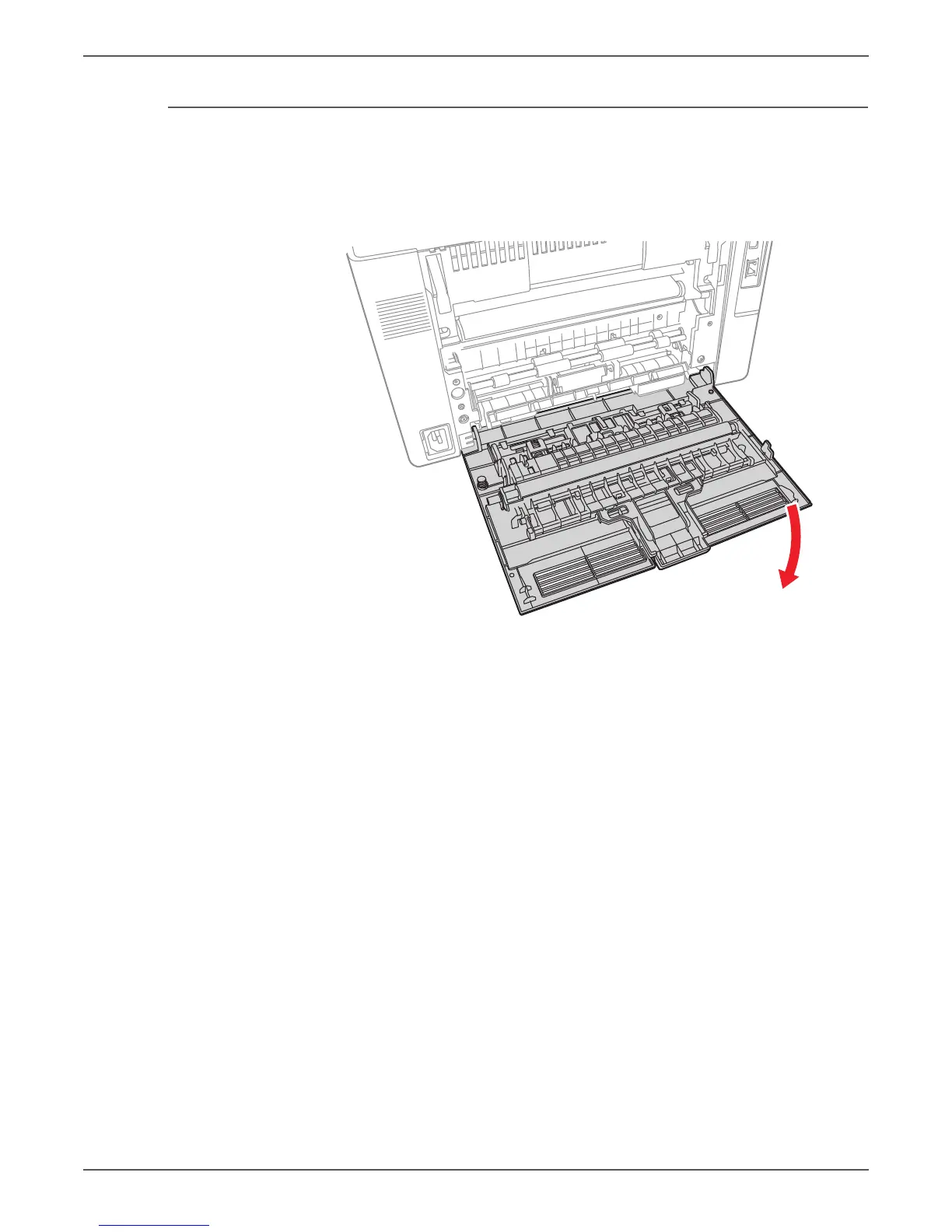

1. Open the Rear Door.
2. Release the right side boss of the Rear Door (located adjacent to the power
receptacle) from the hole in the printer.
s6000-030
