8-104 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
WorkCentre 6015 MFP Control Panel
PL9.1.10
Note
This procedure applies to the WorkCentre 6015 MFP.

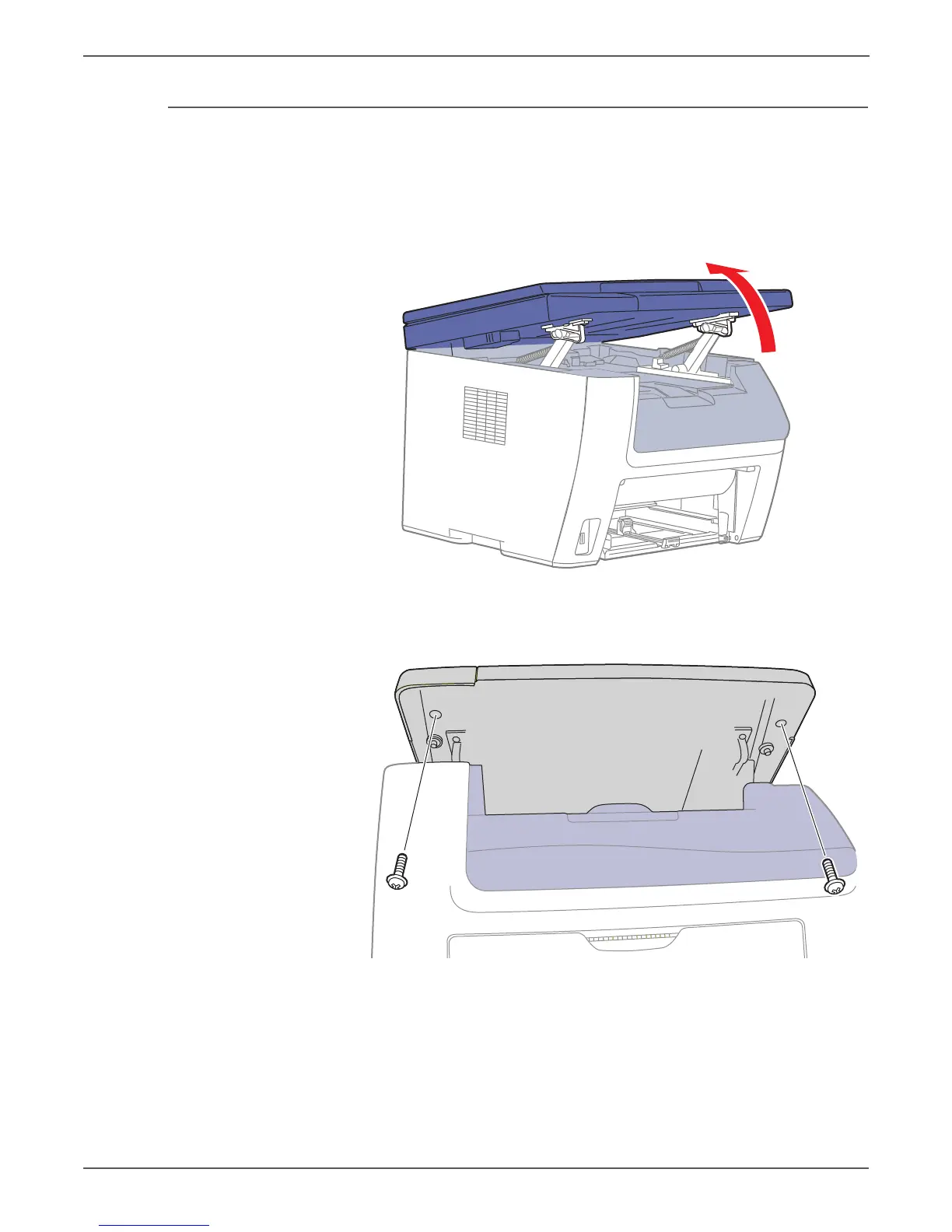

1. Lift the Scanner Assembly.
2. Remove 2 screws (silver, with flange, tap, 8 mm).
3. Close the Scanner Assembly.
s6015-065
s6015-071
