Phaser 6000/6010 Top Rear Cover
PL1.1.23
1. Remove the Main Paper Tray Cover (page 8-7).
2. Remove the Front Cover (page 8-8).
3. Remove the Top Cover (page 8-11).
4. Remove the Inner Top Cover (page 8-21).
5. Remove the Top Rear Cover.
Phaser 6000/6010 Inner Top Cover
PL1.1.24
1. Remove the Main Paper Tray Cover (page 8-7).
2. Remove the Front Cover (page 8-8).
3. Remove the Top Cover (page 8-11).
4. Release the 2 hooks and remove the Inner Top Cover.

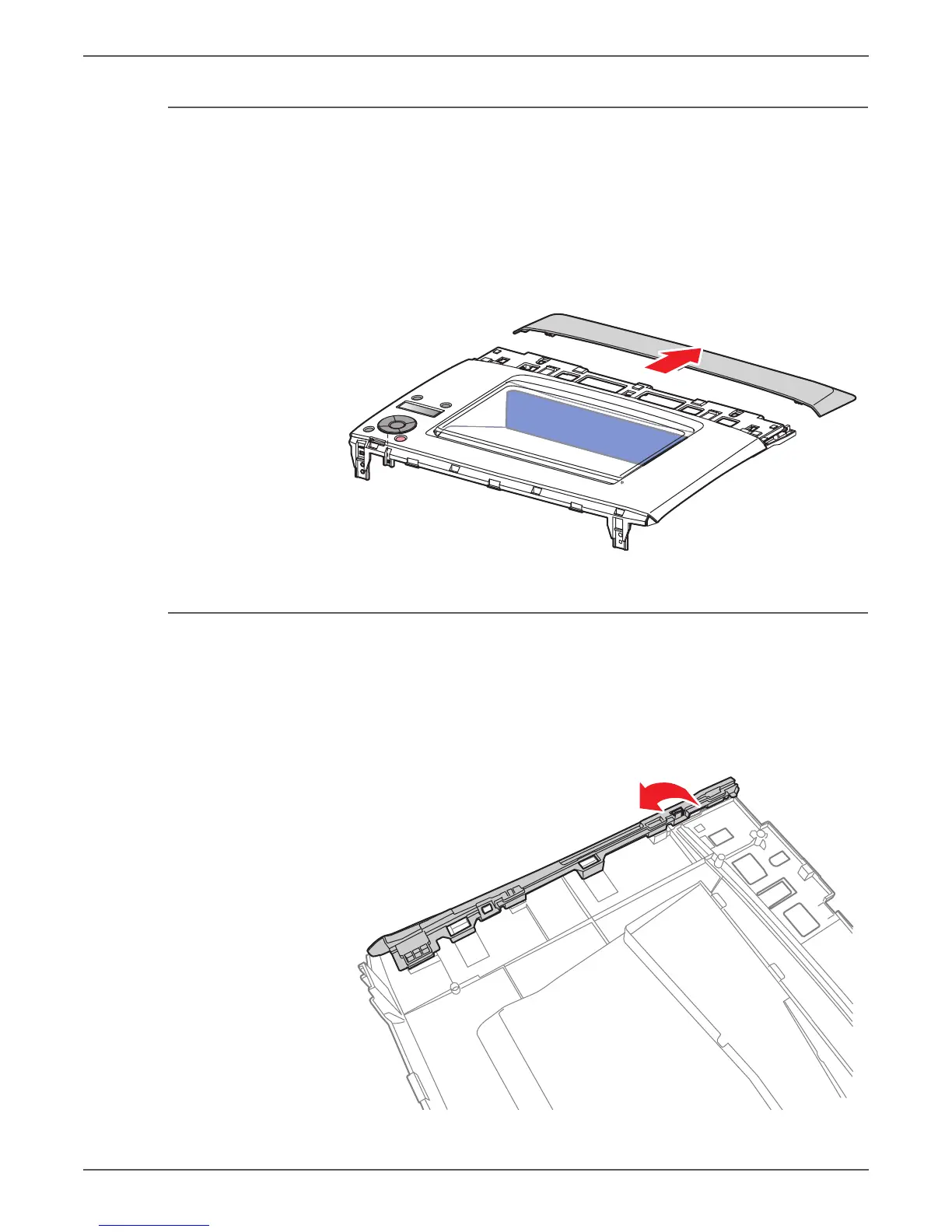

s6000-036
