Xerox PHASER 6010 - Left;Right Follower, Arm, and Spring

8-52 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

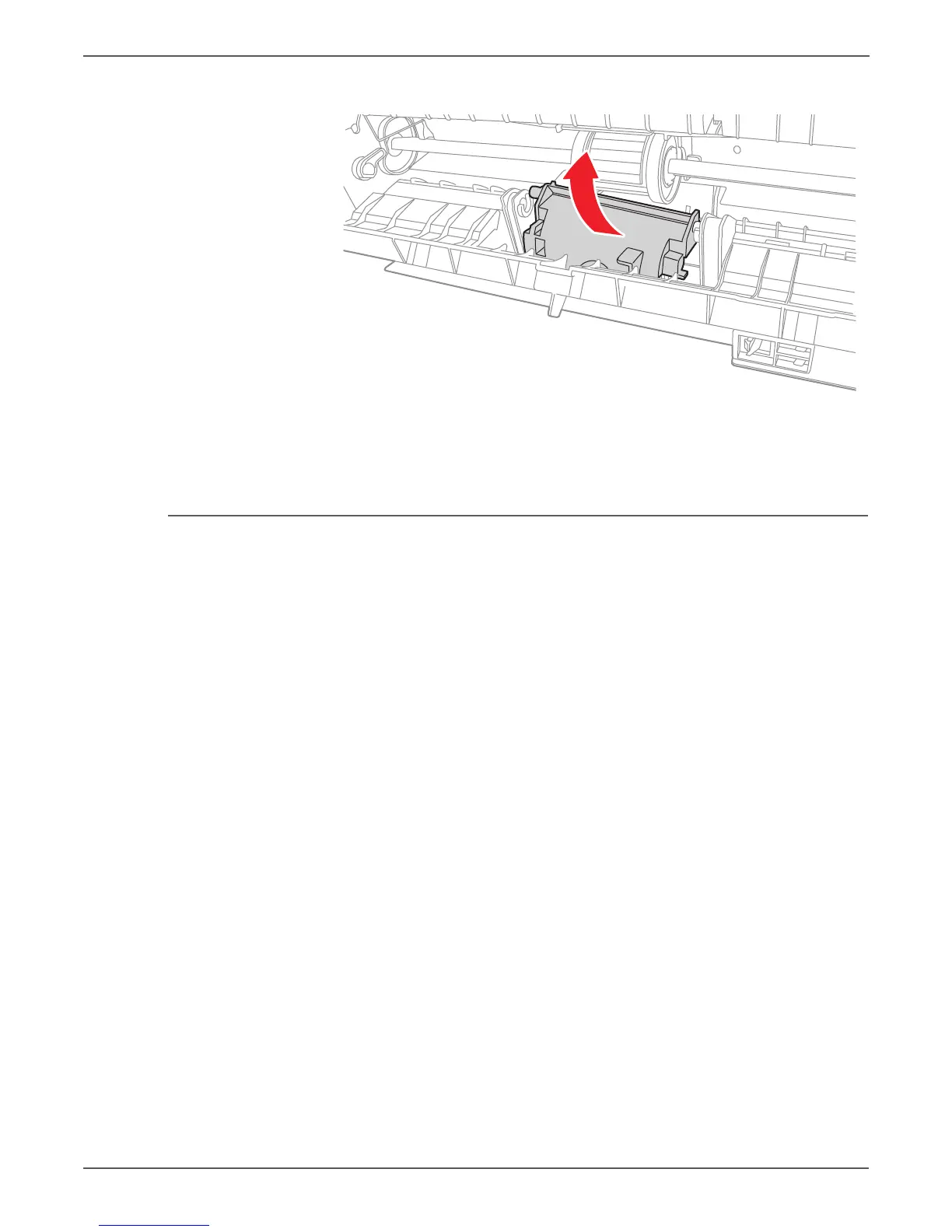

20. Rotate the Separator Pad Assembly until you can lift it out.
Left/Right Follower, Arm, and Spring
PL2.2.13~14, PL2.2.17~18, PL2.2.24
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. Remove the Rear Cover (Phaser 6000/6010 page 8-15; WorkCentre 6015 MFP
page 8-24).
8. Remove the Toner Door (Phaser 6000/6010 page 8-19; WorkCentre 6015 MFP
page 8-27).
9. Remove the Cleaner Assembly (page 8-79).
s6000-068
