Phaser 6000/6010 Hinge Cover
PL1.1.16
1. Remove the Main Paper Tray Cover (page 8-7).
2. Remove the Front Cover (page 8-8).
3. Open the Rear Door.
4. Remove the Top Cover (page 8-11).
5. Remove the Left Side Cover (page 8-10).
6. Remove the Rear Cover (page 8-15).
7. Remove the Toner Door (page 8-19).

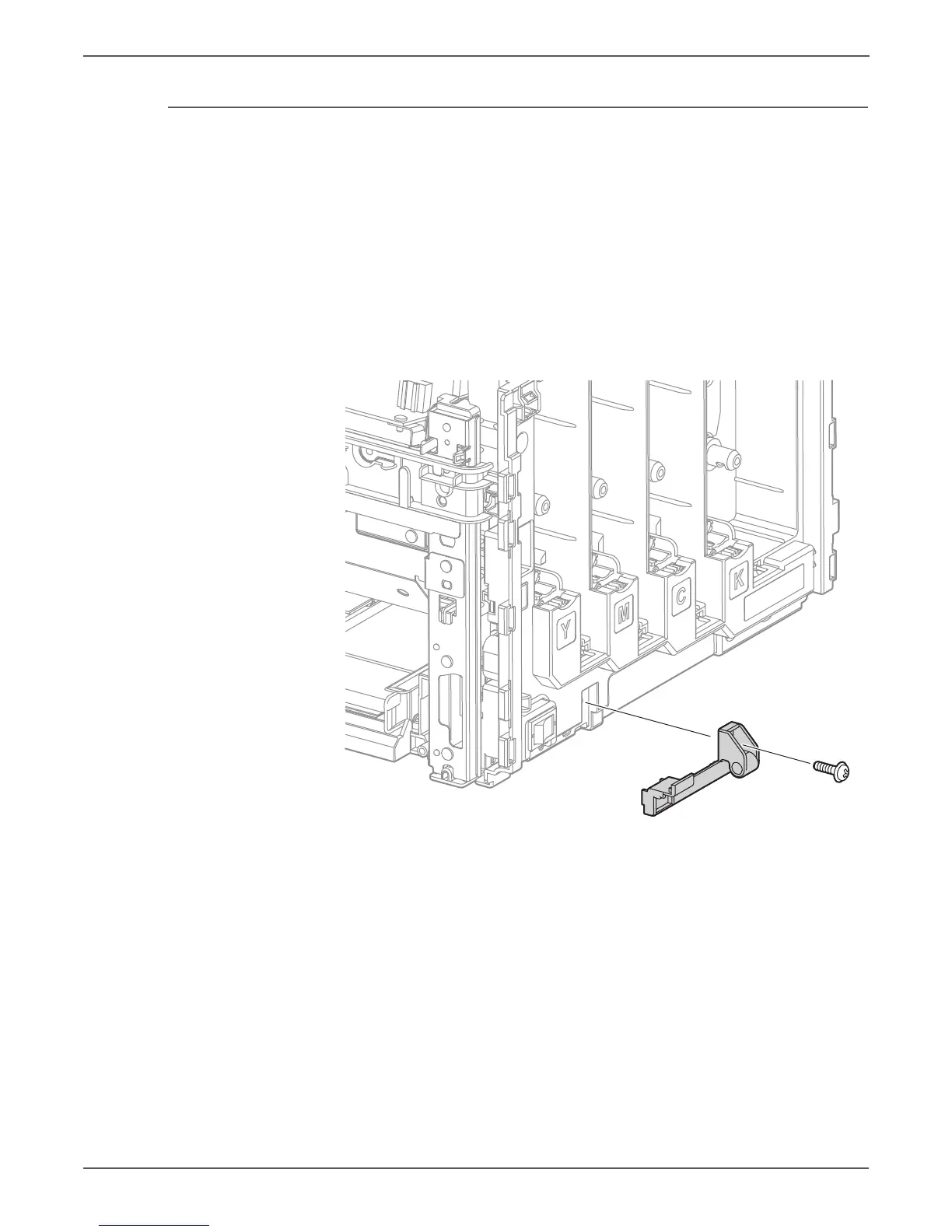

8. Remove 1 screw (silver, tap, 8 mm), and remove the Hinge Cover from the
printer.
s6000-035
