Xerox PHASER 6010 - Workcentre 6015 MFP Output Tray Extension

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-31
Service Parts Disassembly
WorkCentre 6015 MFP Output Tray Extension
PL1.1.27

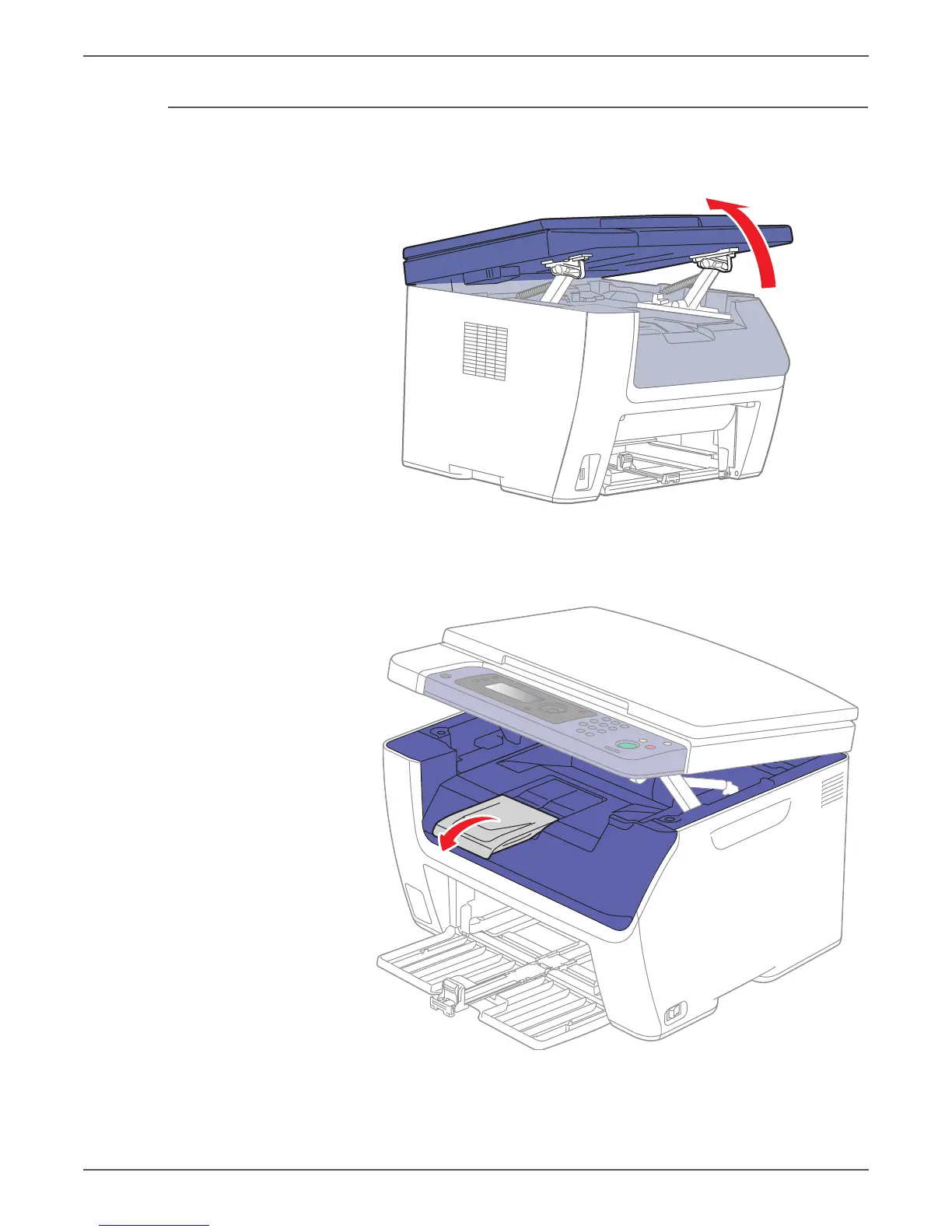

1. Lift the Scanner.
2. Slide the Output Tray Extension towards the front of the printer until it stops.
3. Remove the Output Tray Extension by releasing the bosses from the Top Cover.
s6015-065
s6015-070
