Xerox PHASER 6010 Service Manual

8-98 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
Feed Solenoid
PL6.1.10
1. Remove the Main Paper Tray Cover (Phaser 6000/6010 page 8-7; WorkCentre
6015 MFP page 8-29).
2. Remove the Front Cover (Phaser 6000/6010 page 8-8; WorkCentre 6015 MFP
page 8-34).
3. Open the Rear Door.
4. Remove the Left Side Cover (Phaser 6000/6010 page 8-10; WorkCentre 6015
MFP page 8-29).
5. If present, remove the Wi-Fi Assembly (page 8-103).
6. Remove the Top Cover (Phaser 6000/6010 page 8-11; WorkCentre 6015 MFP
page 8-22).
7. Perform these steps if the printer is a WorkCentre 6015 MFP.
a. Remove the Rear Cover (page 8-24).
b. Remove the IP Board (page 8-114).

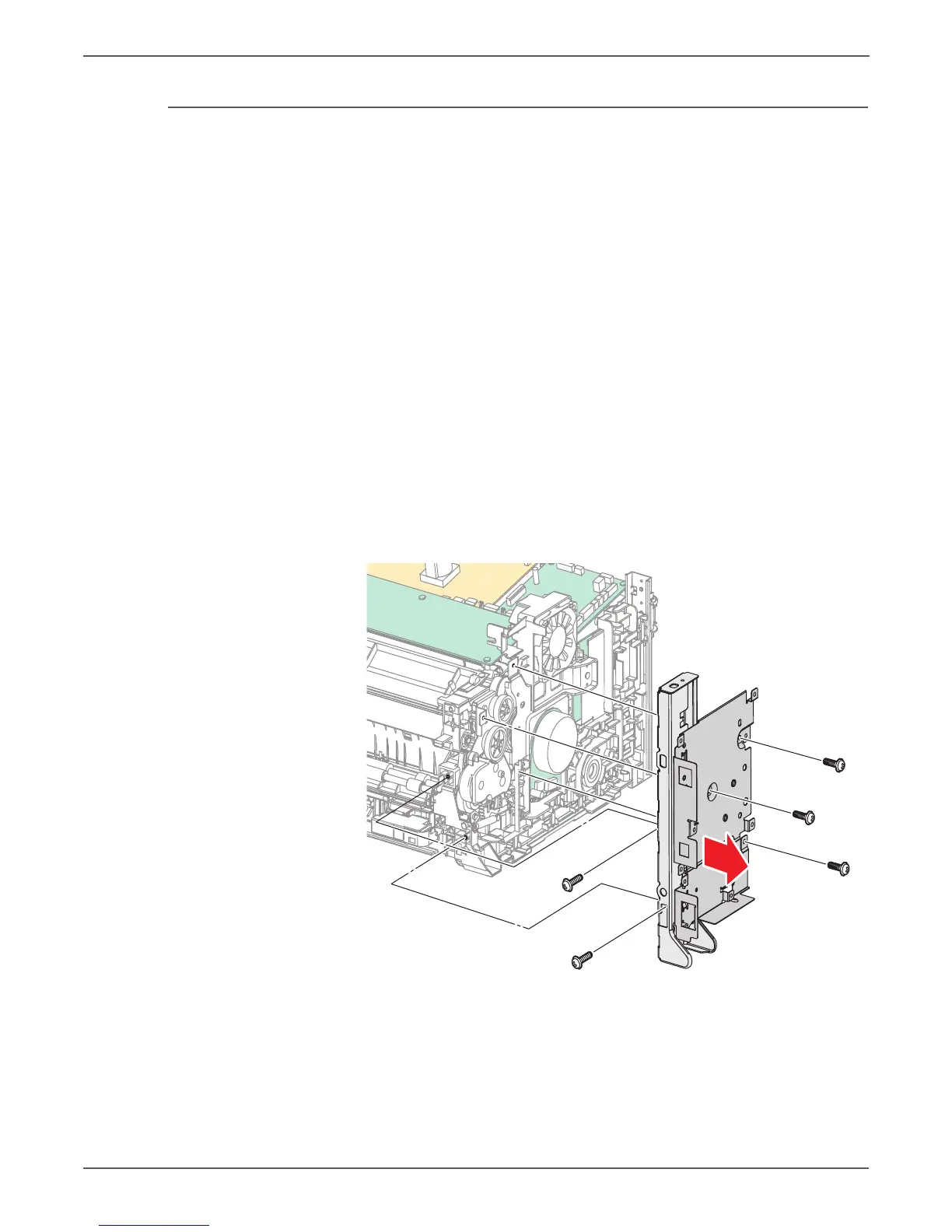

c. Remove 5 screws (silver, M3, 6 mm), and remove the IP Board Plate from
the printer.
Note
To gain access to the lower screw on the face of the IP Board plate,
unhook the Main Paper Tray Harness Guide from the IP Board plate.
8. Disconnect the connectors on the MCU Board (page 8-121).
9. Disconnect P/J160 on the Main Drive Assembly.
s6015-031
