Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-59
Theory of Operation
Fax

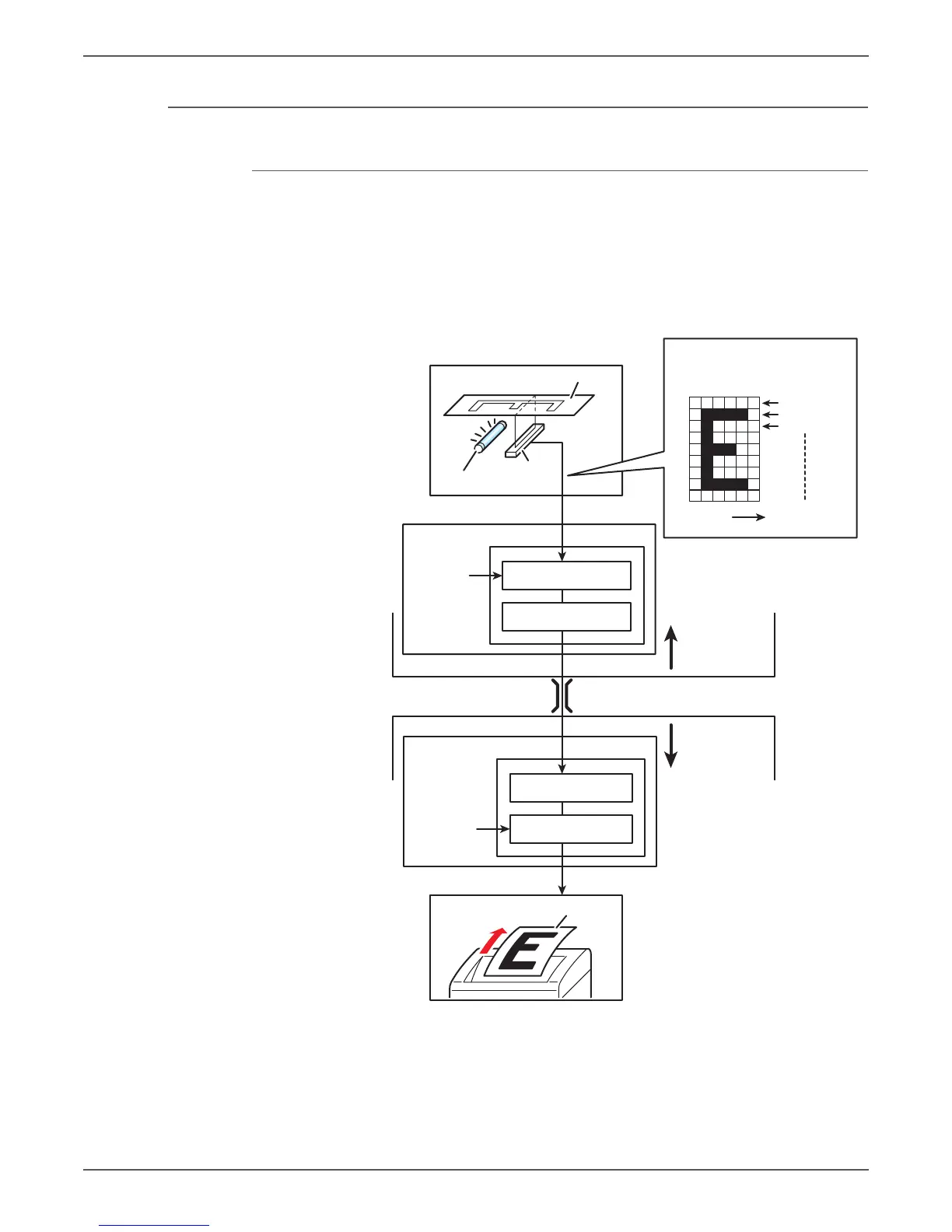

Fax Overview
A Fax (abbreviation of facsimile) is a device that sends and receives image data
using either an analog or a digital telephone line. The following describes the
analog line system.
The three basic units of a Fax are the Scanner (for reading the image), the Control
Circuit, and the Printer.
s6015-033
CMOS Image
Sensor
111111
100001
101111
Scanner
Scanning
LED
Original
Original
Black becomes 0,
white 1 creating...
Digital data
Control Circuit
Digital signal
Modem
DA
Conversion
(Modulation)
A/D Conversion Unit
A/D Conversion Unit
NCU
NCU
Analog signal
Sending FAX
Telephone line
Receiving FAX
Control Circuit
Modem
AD
conversion
(demodulation)
Printer
Digital signal
Printing
Print

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
