Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-41
Theory of Operation

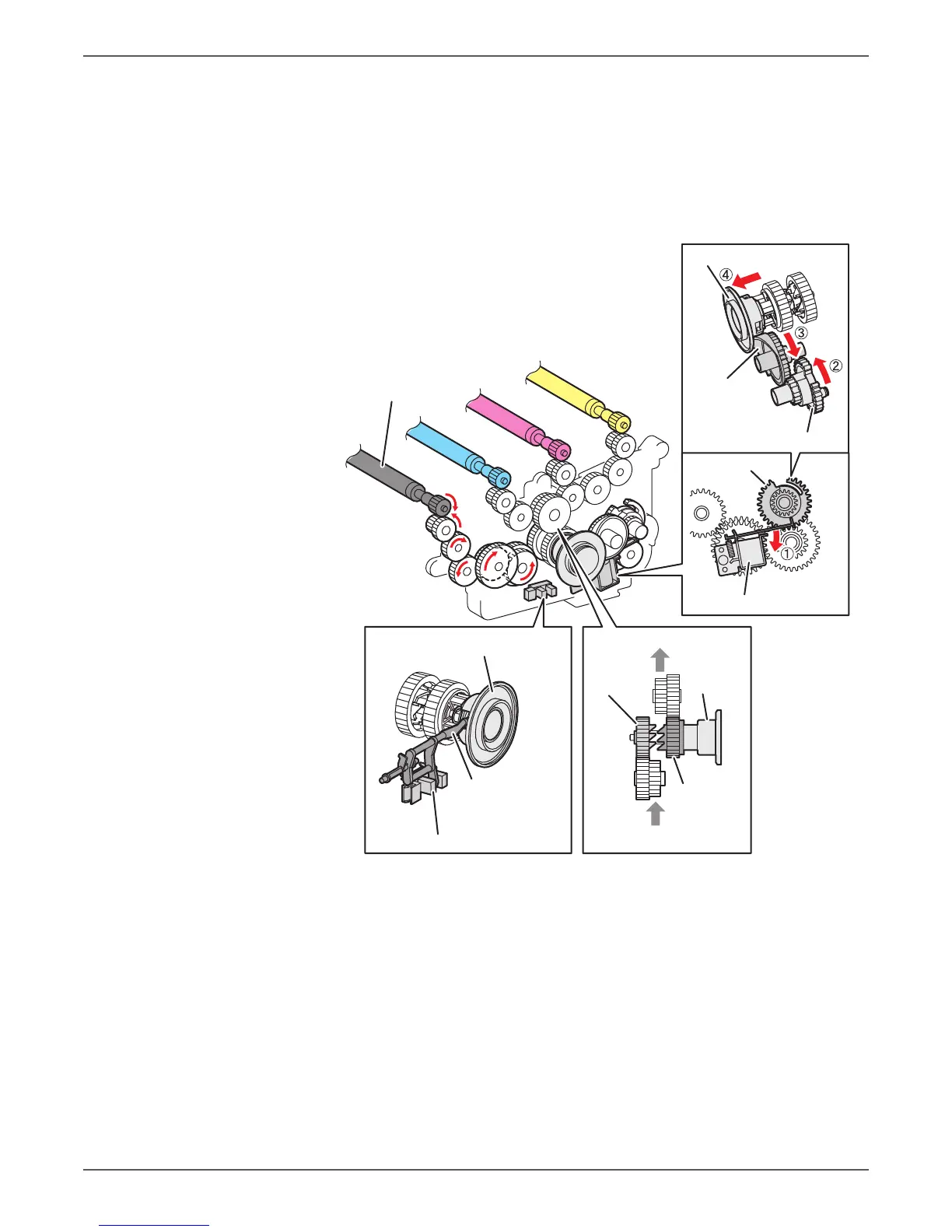

•Operation in B/W mode
In B/W mode, the Switching Solenoid in the Developer Drive Assembly
disconnects the magnet rollers for YMC from the torque from the Drive
Assembly. This allows only the K magnet roller to rotate to form a visible toner
image in Black.
s6000-108
[ Black And White Mode ]
Magnet Roller (K)
Gear C
Gear C
Gear Cam
Flange D4
Flange D4
Gear D4 In
Gear D4 Out
Drive From Main Motor
Cutting Off Drive
Flange D4
Actuator K
(Black And White
Mode Position)
Switching Sensor
Switching Solenoid

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
