Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-75
Theory of Operation

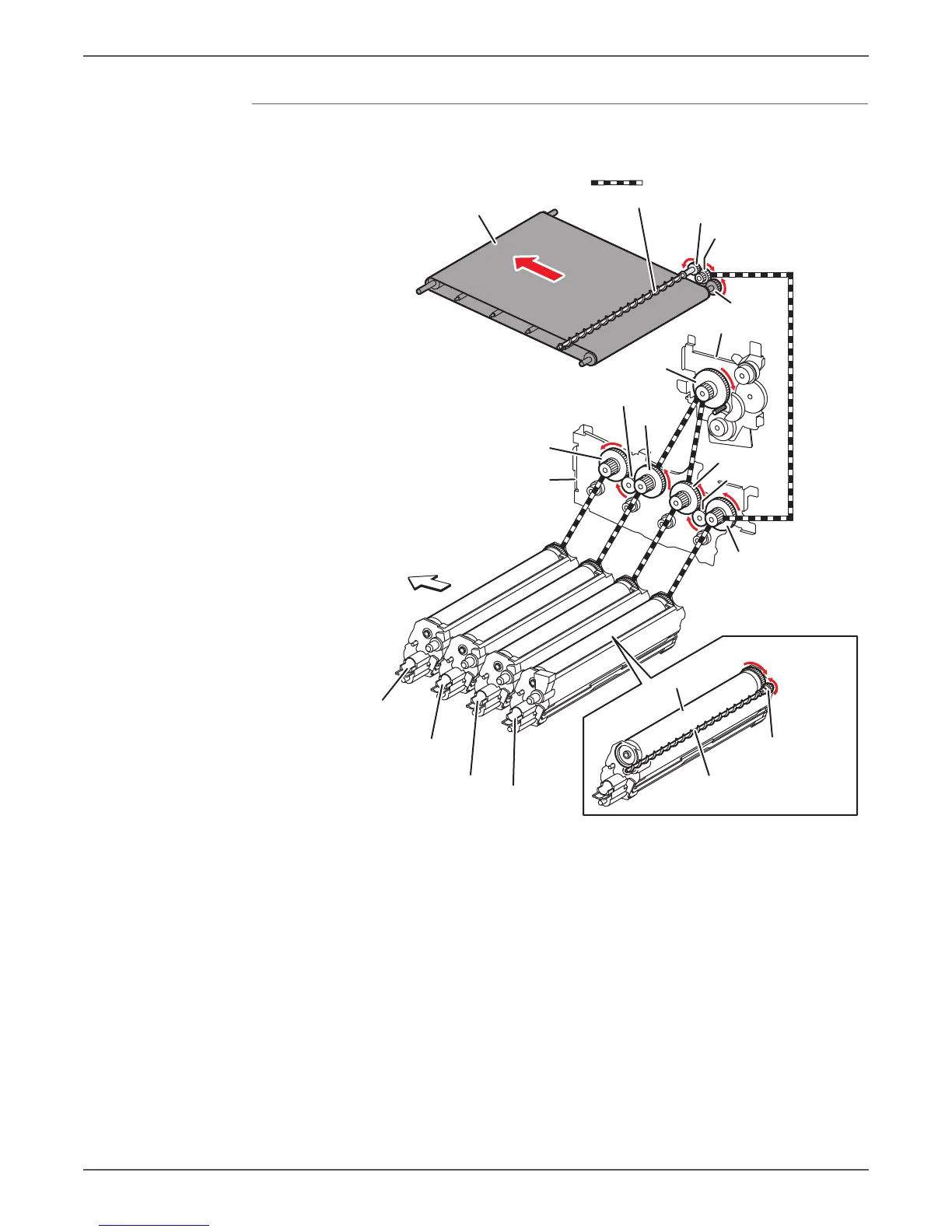

Drum, Belt Drive, and Excess Toner Collecting Drive Components
Front
s6000-132
: Indicates The Engagement Of Gears
[ Name Of Moving Parts ]
Motor Drive
Gear X1
Gear Idler X
Gear Idler X
DRV Gear
Gear X2
Gear X2
Gear X2
MU Drive
Xerographic
Developer (Y)
Xerographic
Developer (M)
Xerographic
Developer (C)
Xerographic
Developer (K)
[ Belt ]
Auger Gear
[ Belt Cleaning Auger ]
Gear X2
Gear T1
Xerographic
Cleaning Auger Gear
[ Drum ]
[ Xerographic Cleaning Auger ]

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
