8-74 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

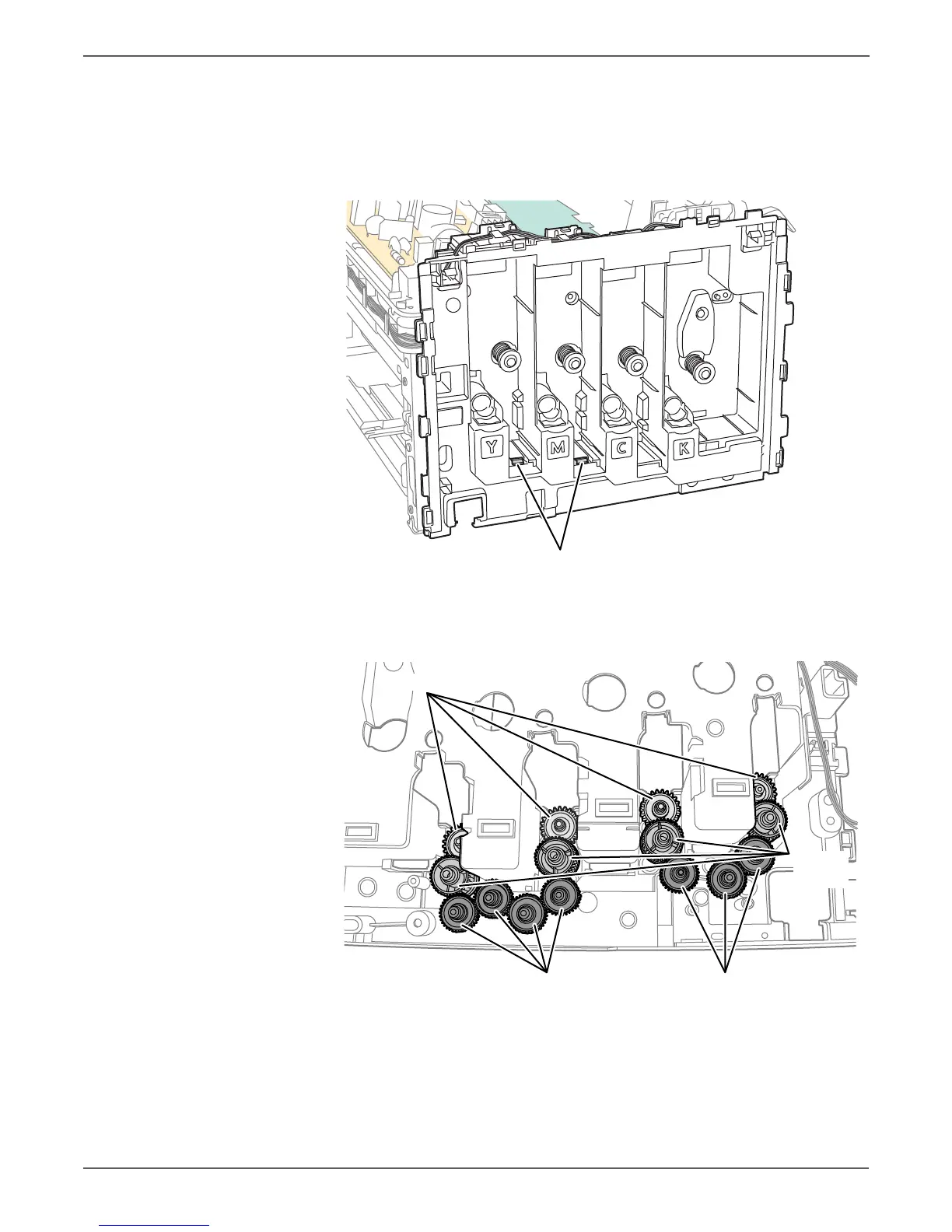

12. Release the 2 hooks on the Frame Drive Assembly, and remove the Frame
Drive Assembly from the toner dispense frame.
Caution
When performing this step, do not drop the gears on the Frame Drive
Assembly.
13. Remove the Idler 34 Gears, the Oneway Clutches Assemblies, and the Idler 23
Gears.
s6000-232
Hooks
s6000-114
Idler 23 Gears
Oneway
Clutches
Idler 34 Gears
Idler 34 Gears
