Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 4-51
Troubleshooting
Main Motor
1. Enter Service Diagnostics (page 4-11).
2. Use the Up and Down Arrow buttons to select Printer > IOT Diag > Digital
Output > DO-0.
Caution
When checking the motor, stop the test within 10 seconds. Executing a
motor check for 10 seconds or longer may cause damage to the printer.
To stop the motor check, press the Stop button (or click the Stop button if
performing the test from the CE Diag Tool).

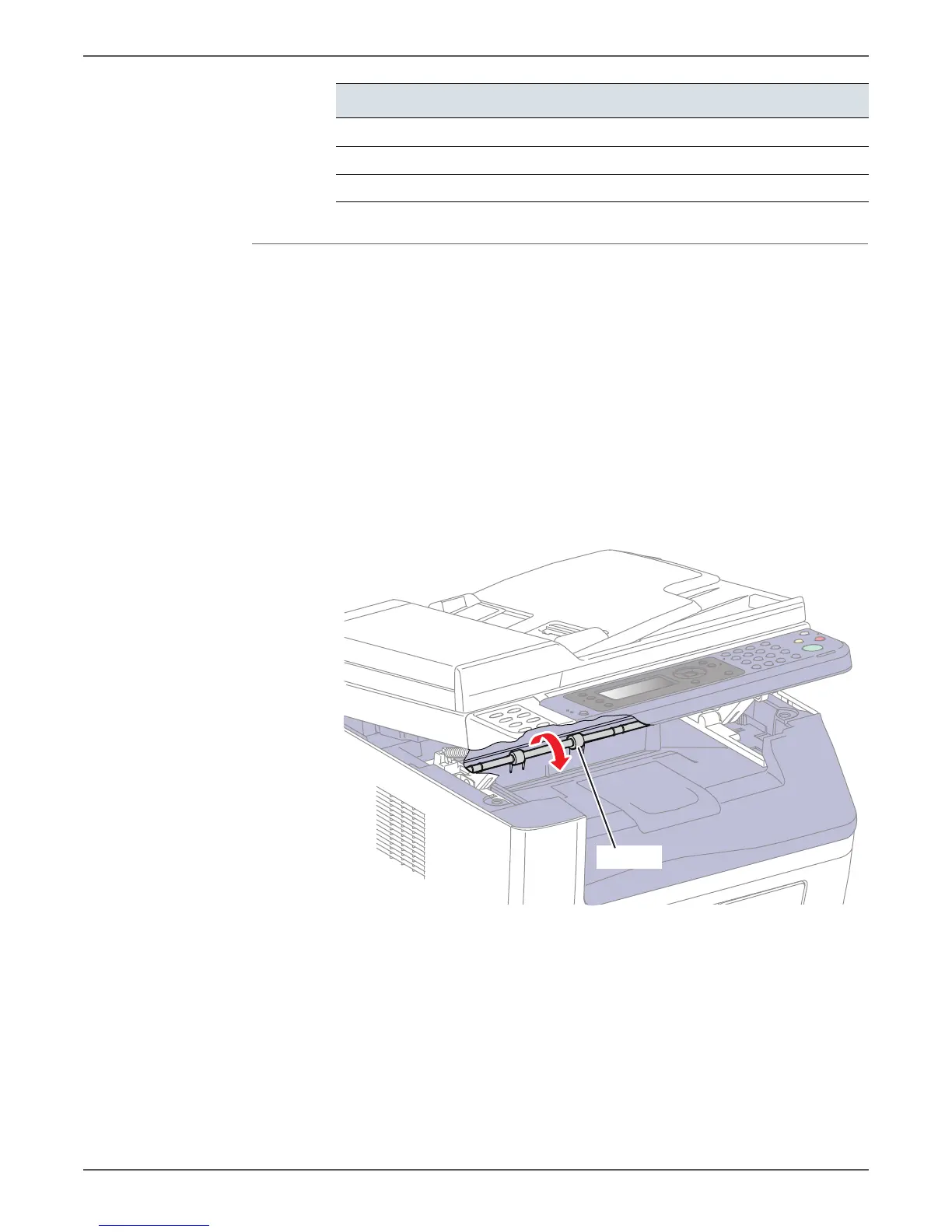

3. Check that the Exit Roller rotates.
4. Press the Stop button to stop the test.
DO-12 Magenta Toner Motor
DO-14 Cyan Toner Motor
DO-16 Black Toner Motor
Code Component
s6015-077
Exit Roller
