Xerox PHASER 6010 Service Manual

Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-51
Theory of Operation

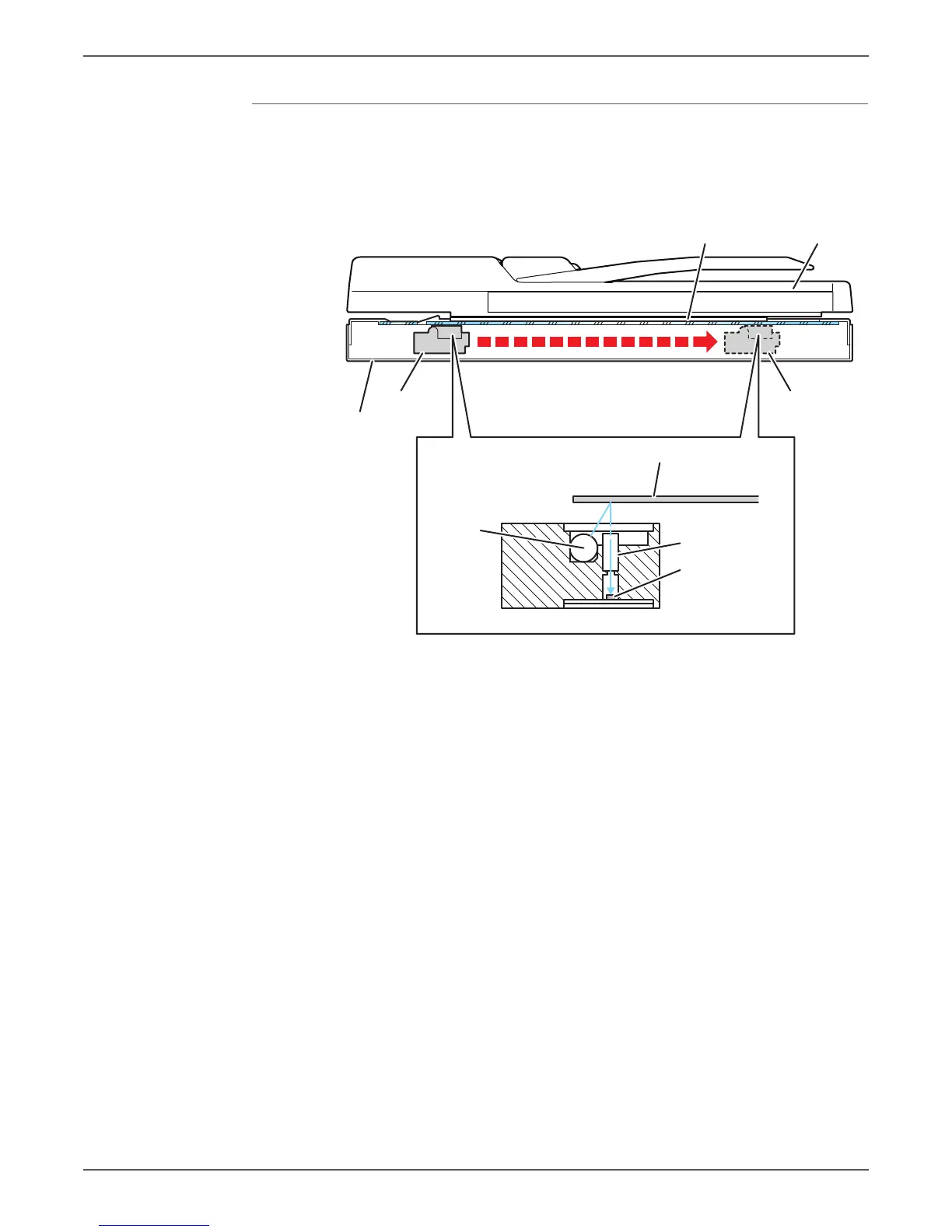

Scanning at the Document Glass
While the carriage assembly in the IIT moves, the LED array illuminates the
document, allowing the reflected image to be read by the CMOS image sensor
through the rod scope. The speed at which the carriage assembly moves is
dependant on what the copy magnification is set at.
s6015-019
ADF
IIT
Document
Carriage
Assembly
Carriage
Assembly
Document
LED Array
Rod Scope
CMOS
Image Sensor

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
