Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 1-7
General Information

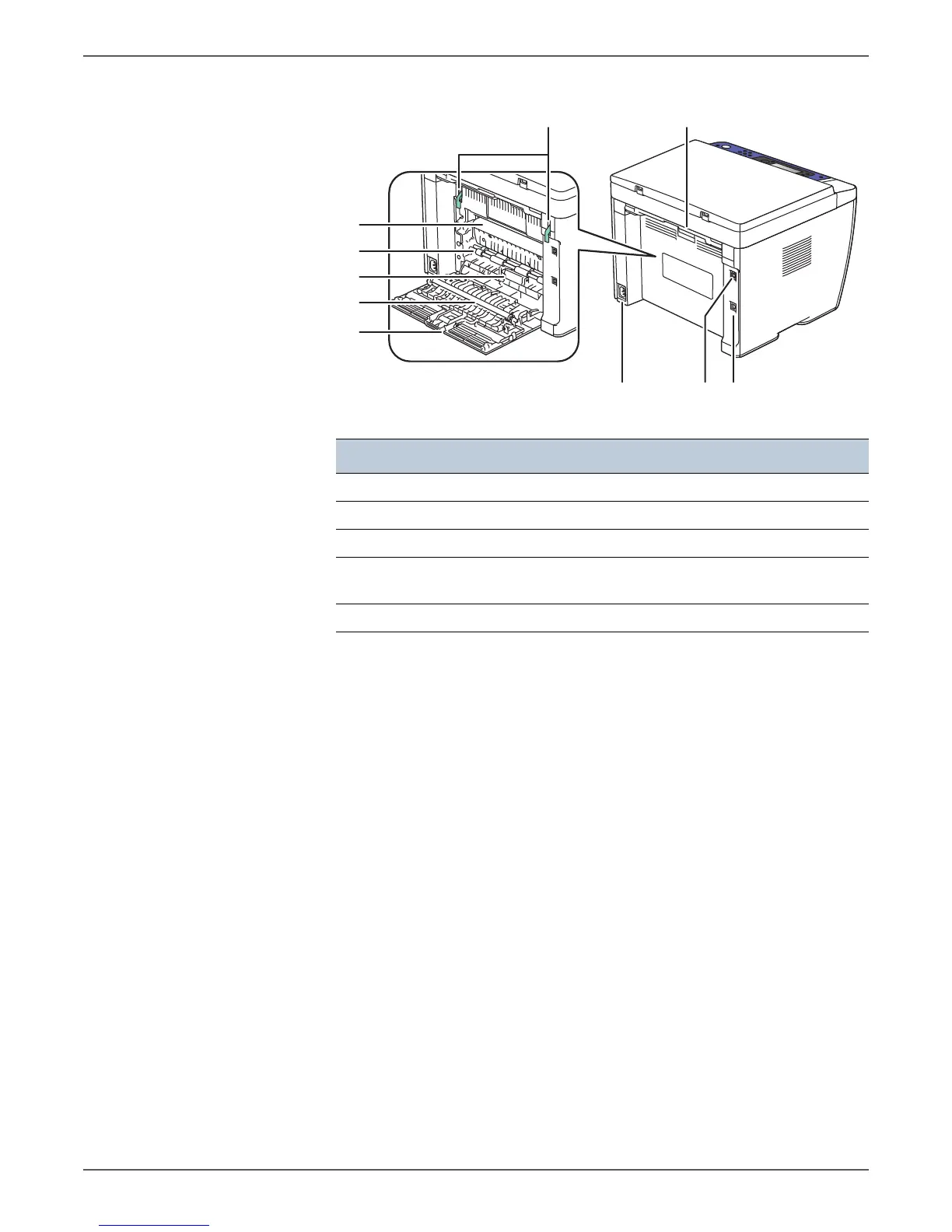

WorkCentre 6015 MFP
Item Description Item Description
1 Rear Door 6 Fuser Levers
2 Transfer Roller 7 Rear Door Latch
3 Separator Pad Assembly 8 USB Port
4 Registration Pinch Roller 9 Ethernet Port (6015N/NI
models only)
5 Transfer Belt 10 Power Receptacle
5
67
4
3
2
1
10 89
