Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 5-35
Image Quality
Troubleshooting Reference Table

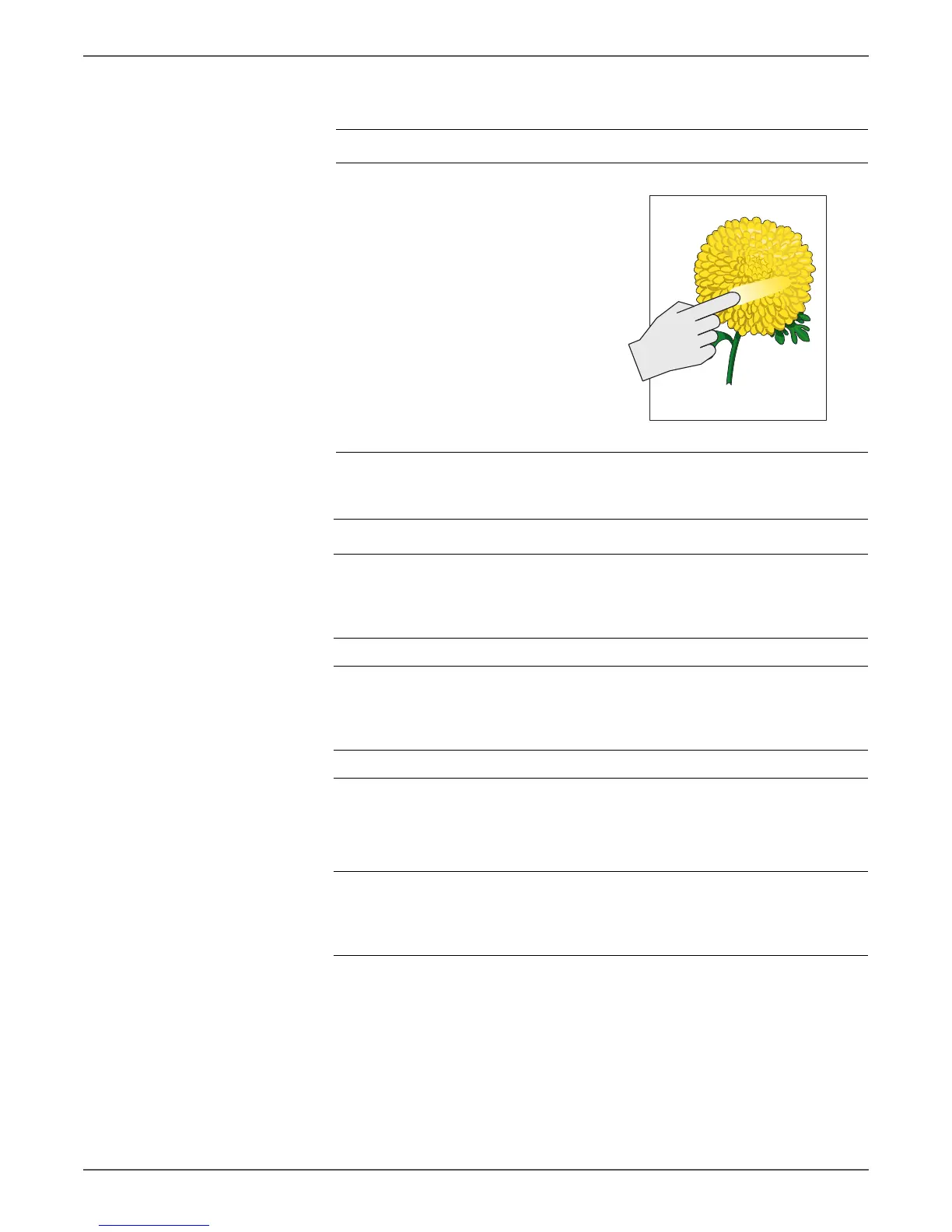

Applicable Parts Example Print
■ Fuser, PL5.1.1
■ MCU Board, PL7.2.2
Troubleshooting Procedure Table
Step Actions and Questions Yes No
1 Check the media being used and its
condition.
Is the media dry and
recommended?
Go to step 3. Replace with
dry, approved
media, then go
to step 2.
2 Does the image print correctly? Complete. Go to step 3.
3 Check the Toner type.
Is non-Xerox Toner in use?
Replace with
Xerox toner,
then go to
step 4.
Go to step 5.
4 Does the image print correctly? Complete. Go to step 5.
5 Replace the Fuser (page 8-80).
Warning: Allow the Fuser to cool
before removal.
Does the error persist?
Complete. Complete.
6 Replace the MCU Board
(page 8-121).
Does the error persist?
Contact your
designated
field support for
assistance.
Complete.
Unfused Image
