Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 5-39
Image Quality

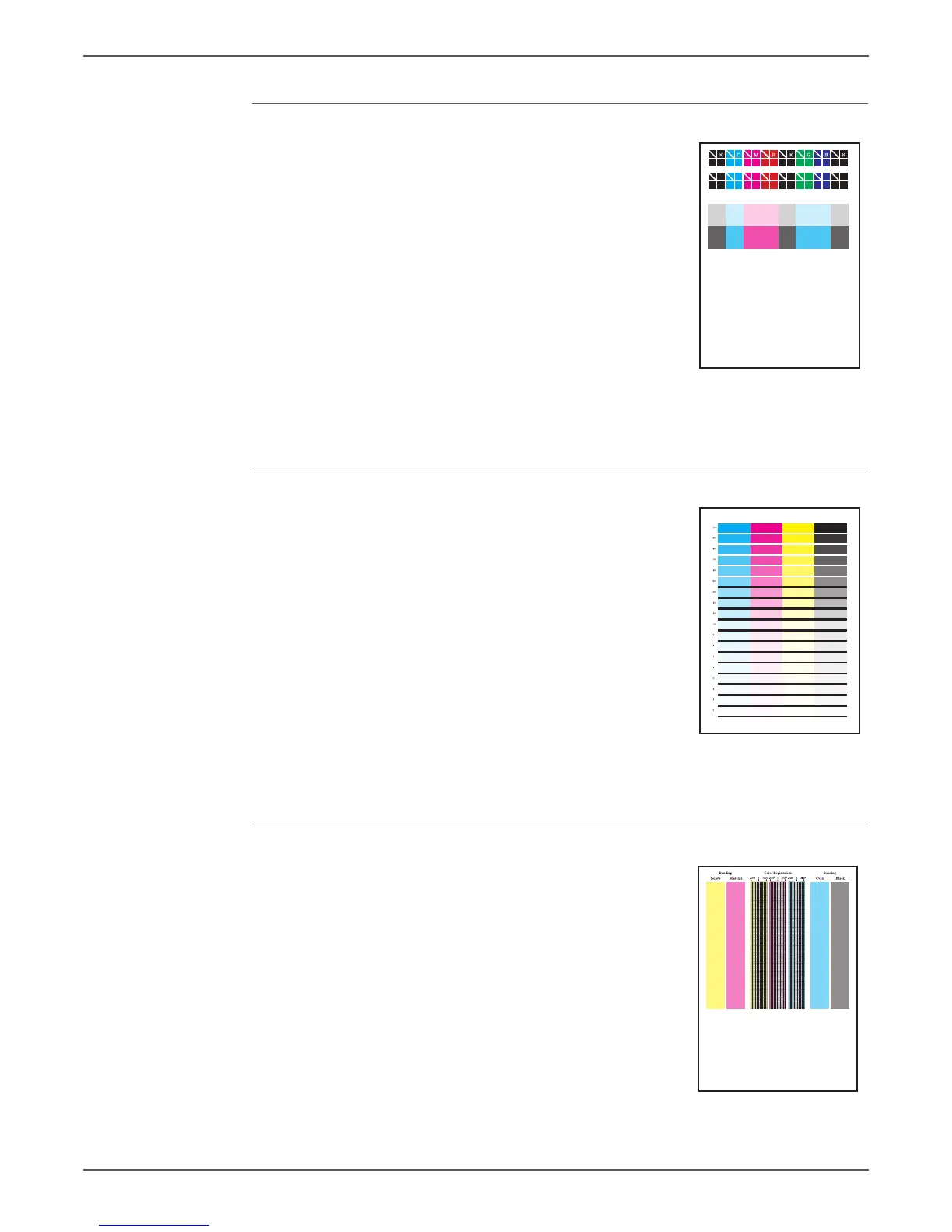

Ghost Configuration Chart
This print allows you to check for image ghosting.
When a ghost occurs, the patches broken into two
triangles and the K/B/G/R/M/C characters appear on
the light-colored patches K/C/M in the lower half of
the chart, and the patches with triangles only
appears on the dark-colored patches K/C/M below
the light-colored patches.
• Fail: Characters repeat in the light area.
• Pass: Characters are not visible in the light area.
4 Colors Configuration Chart
This test print provides 2 - 100% density for Cyan,
Magenta, Yellow, or Black on the whole page. This
test is used to identify problems with the printer
function or the Image Processor Board. Compare the
print with this example to determine the problem.
• Fail: Check the printer function.
• Pass: Check the Image Processor Board.
MQ Chart
Prints charts to check for binding in A4 or Letter.
When the PQ problem occurred, this test helps to
identify the problem as printer related or otherwise.
