Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 8-25
Service Parts Disassembly

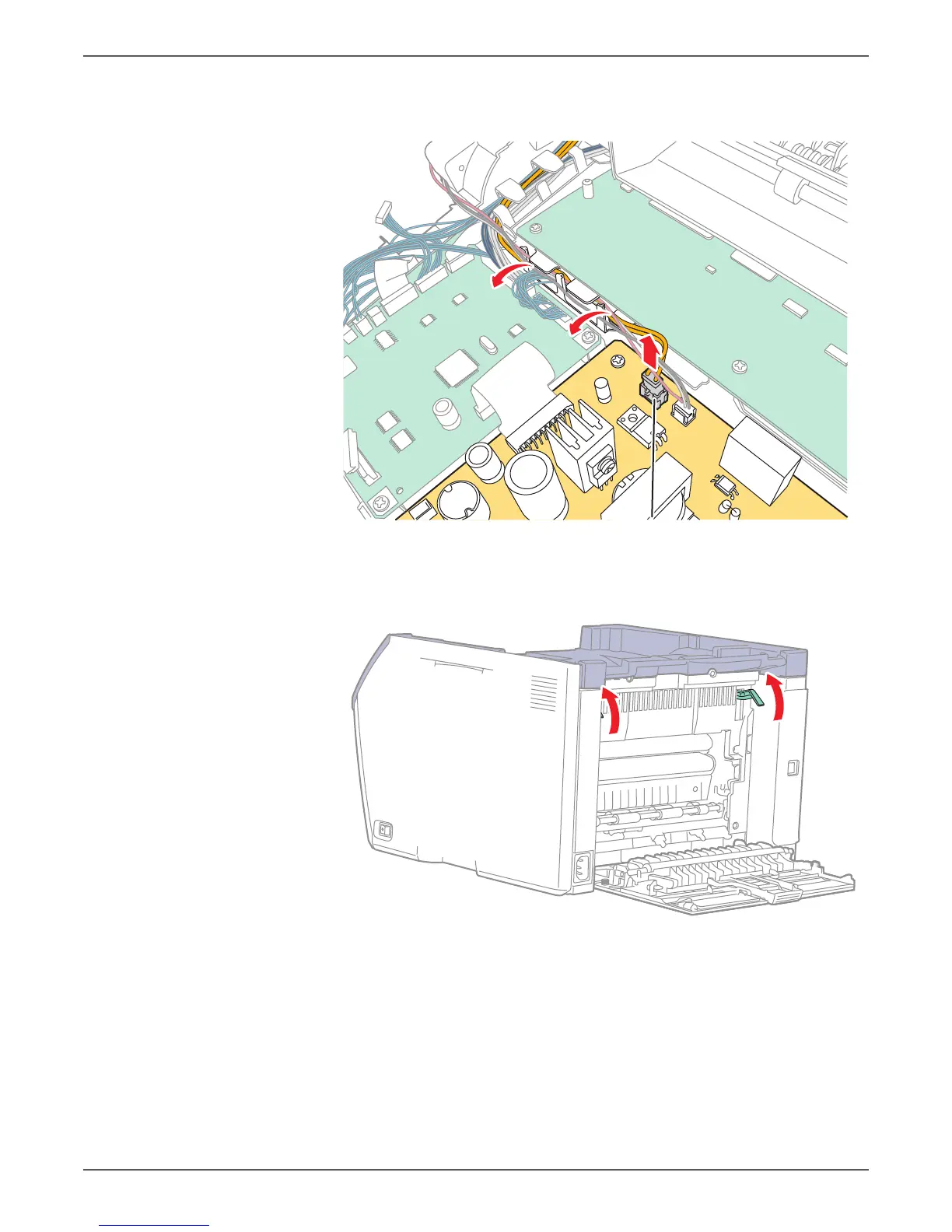

3. Disconnect P/J204 on the LVPS, and release the harness from the harness
guide.
4. Pull up the two levers on the Fuser.
P/J204
s6000-033
s6015-104
