8-48 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

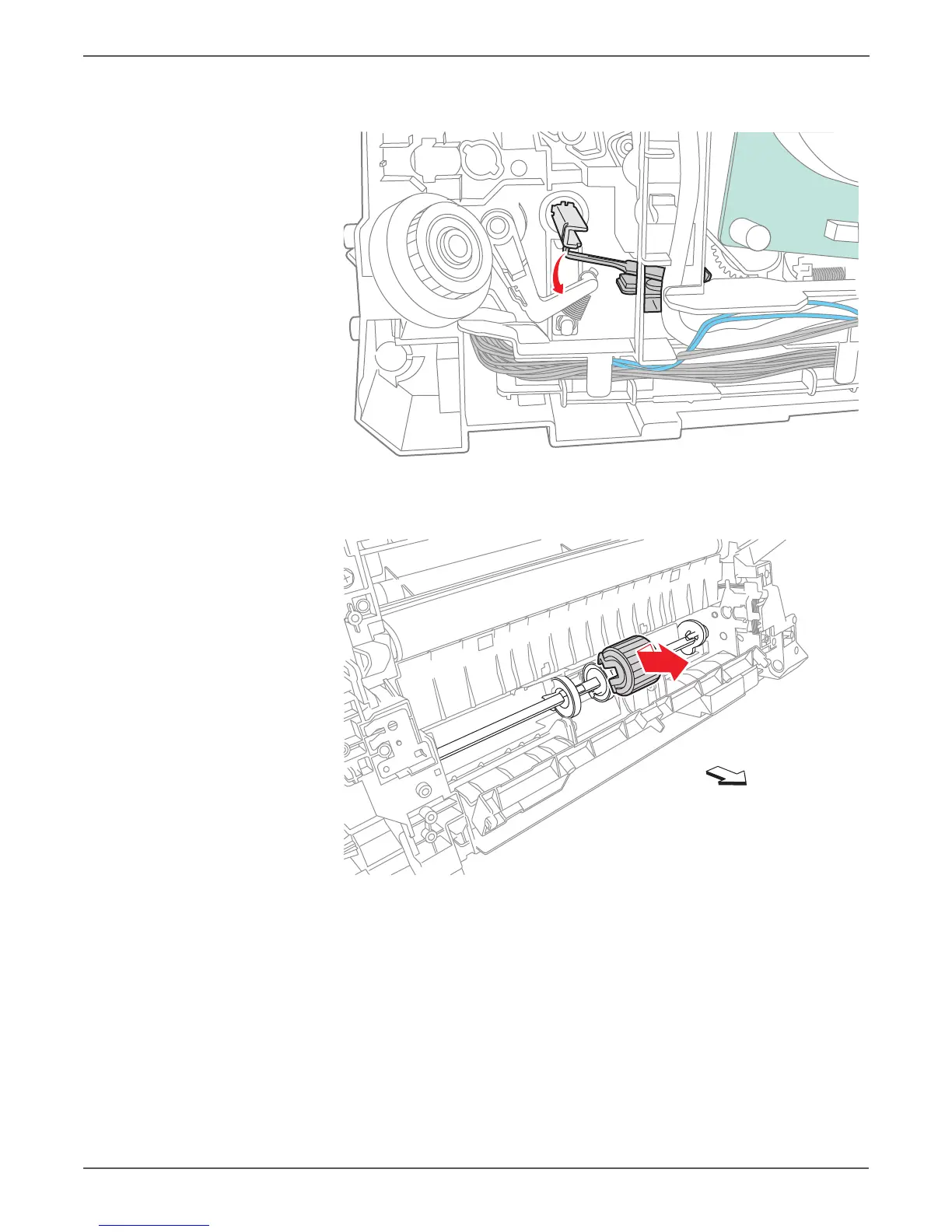

22. Depress the Feed Solenoid arm while rotating the Feed Roller Shaft
counterclockwise 90 degrees.
23. Release the hook on the Feed Roller, and move the Feed Roller to printer right
to remove it.
s6000-243
s6000-215
Rear
