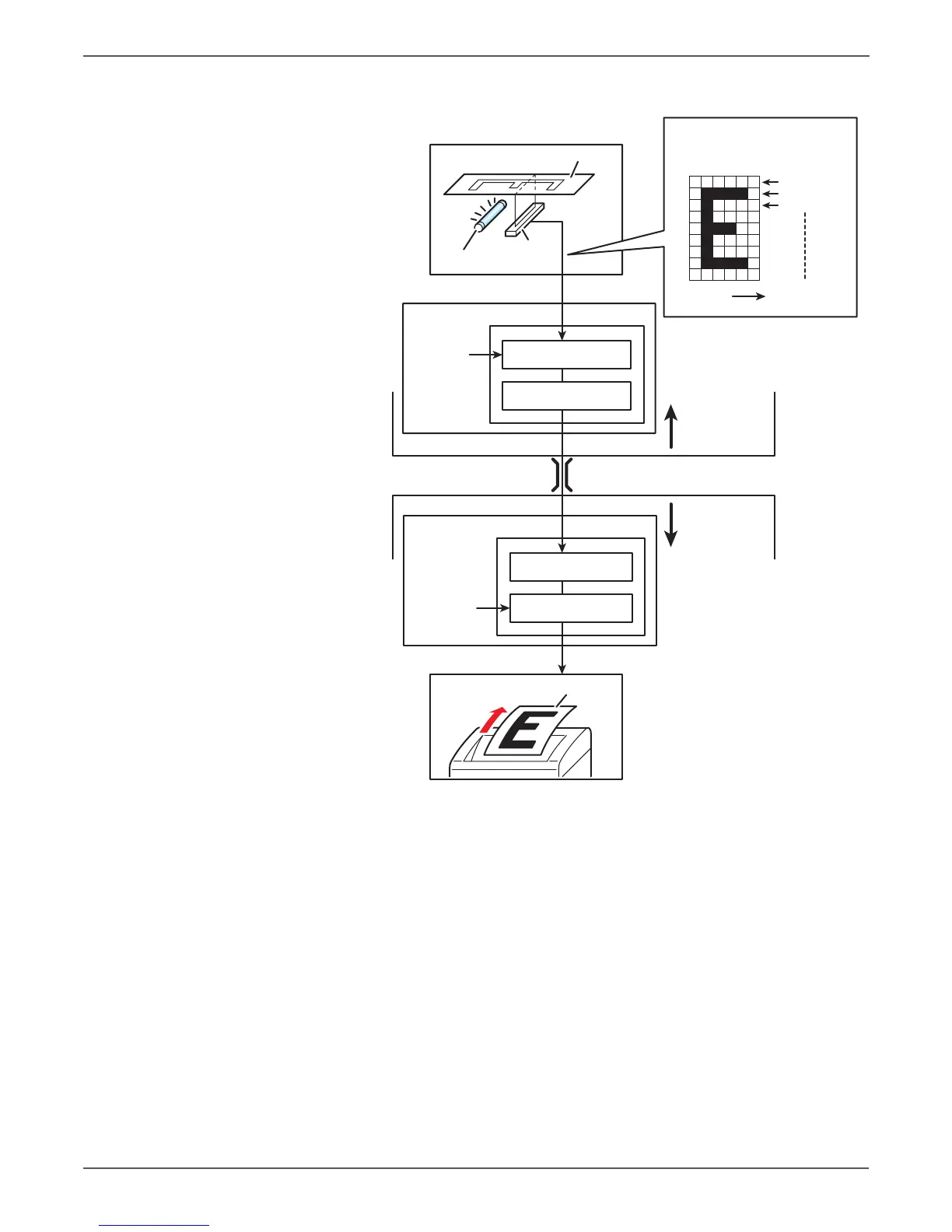

CMOS Image
Sensor
111111
100001
101111
Scanner
Scanning
LED
Original
Original
Black becomes 0,
white 1 creating...
Digital data
Control Circuit
Digital signal
Modem
DA
Conversion
(Modulation)
A/D Conversion Unit
A/D Conversion Unit
NCU
NCU
Analog signal
Sending FAX
Telephone line
Receiving FAX
Control Circuit
Modem
AD
conversion
(demodulation)
Printer
Digital signal
Printing
Print
