8-76 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

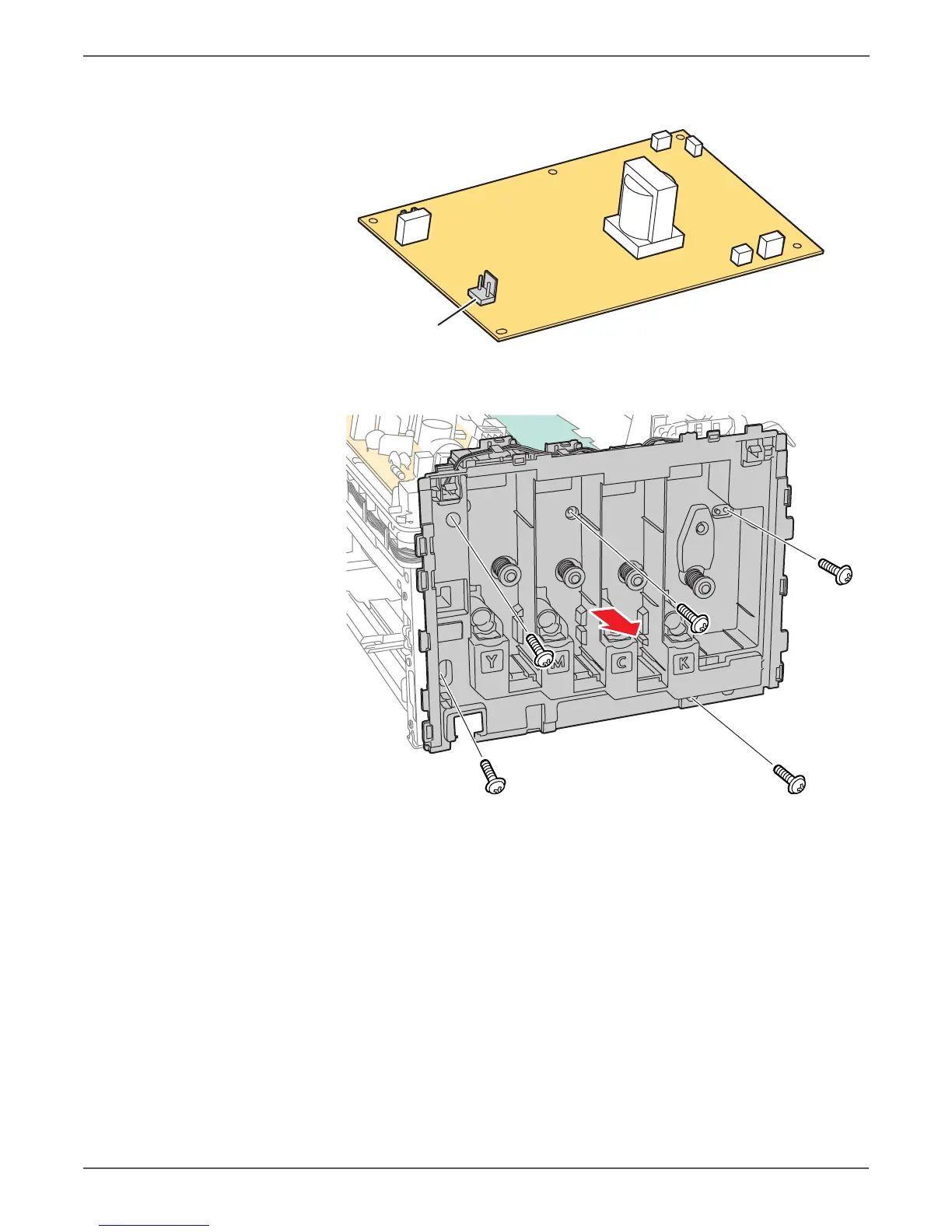

11. Disconnect P/J201 on the LVPS and release the harness from the harness
guide.
12. Remove 5 screws (silver, tap, 8 mm), and remove the toner dispense frame
from the printer.
P/J201
s6000-117
s6000-039
