Xerox PHASER 6010 Service Manual

8-84 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
• WorkCentre 6015 MFP: Remove the Rear Cover (page 8-24).

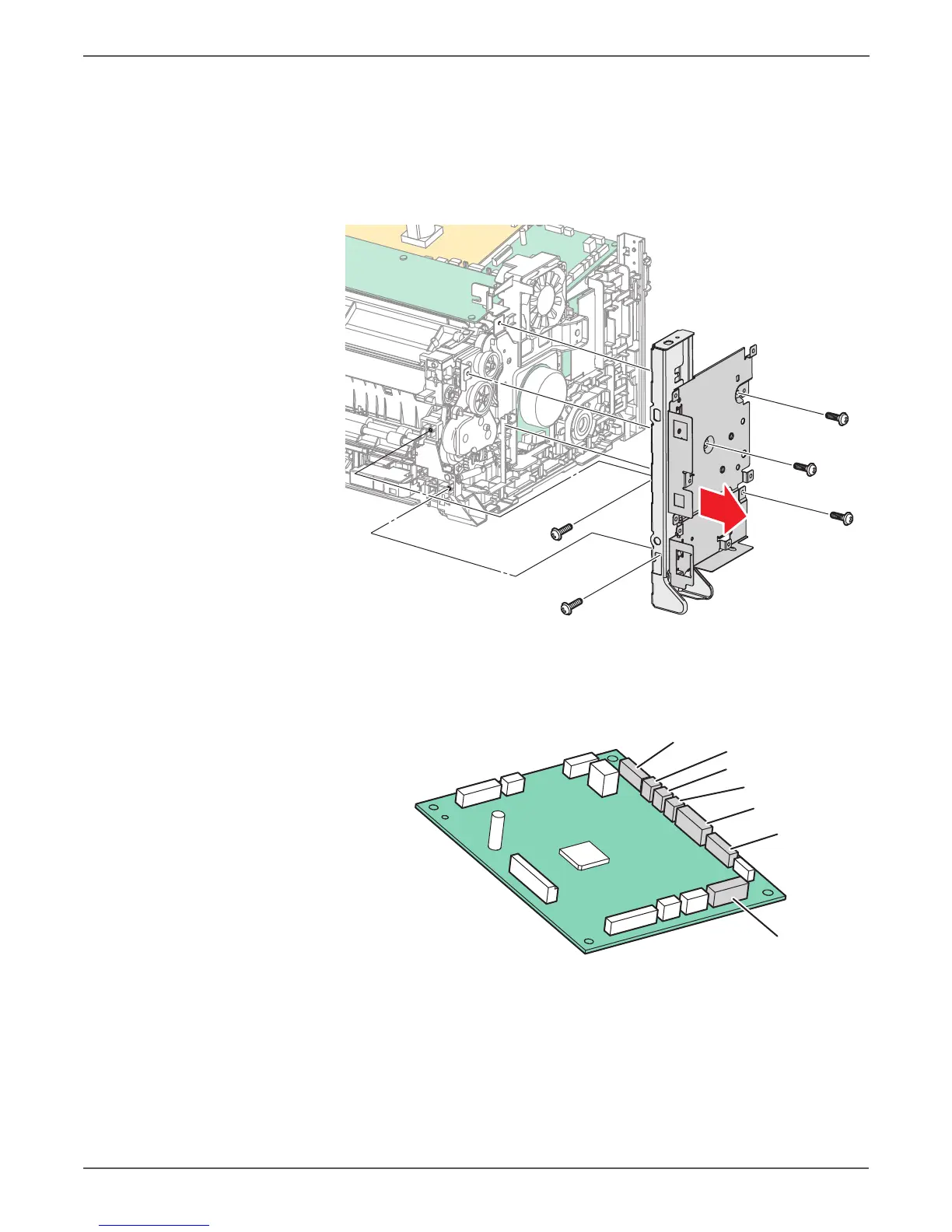

Remove the 5 screws (silver, M3, 6 mm), and remove the IP Board plate
from the printer.
Note
To gain access to the lower screw on the face of the IP Board plate,
unhook the Main Paper Tray Harness Guide from the IP Board plate.
10. On the MCU Board, disconnect the harness at P/J10, and then unlace the
harness from the harness guide.
11. Disconnect the connectors on the MCU Board as shown in the following
illustration.
s6015-031
s6000-119
P/J14
P/J12
P/J23
P/J25
P/J19
P/J10
P/J16

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
