8-90 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
• WorkCentre 6015 MFP: Remove the Rear Cover (page 8-24).

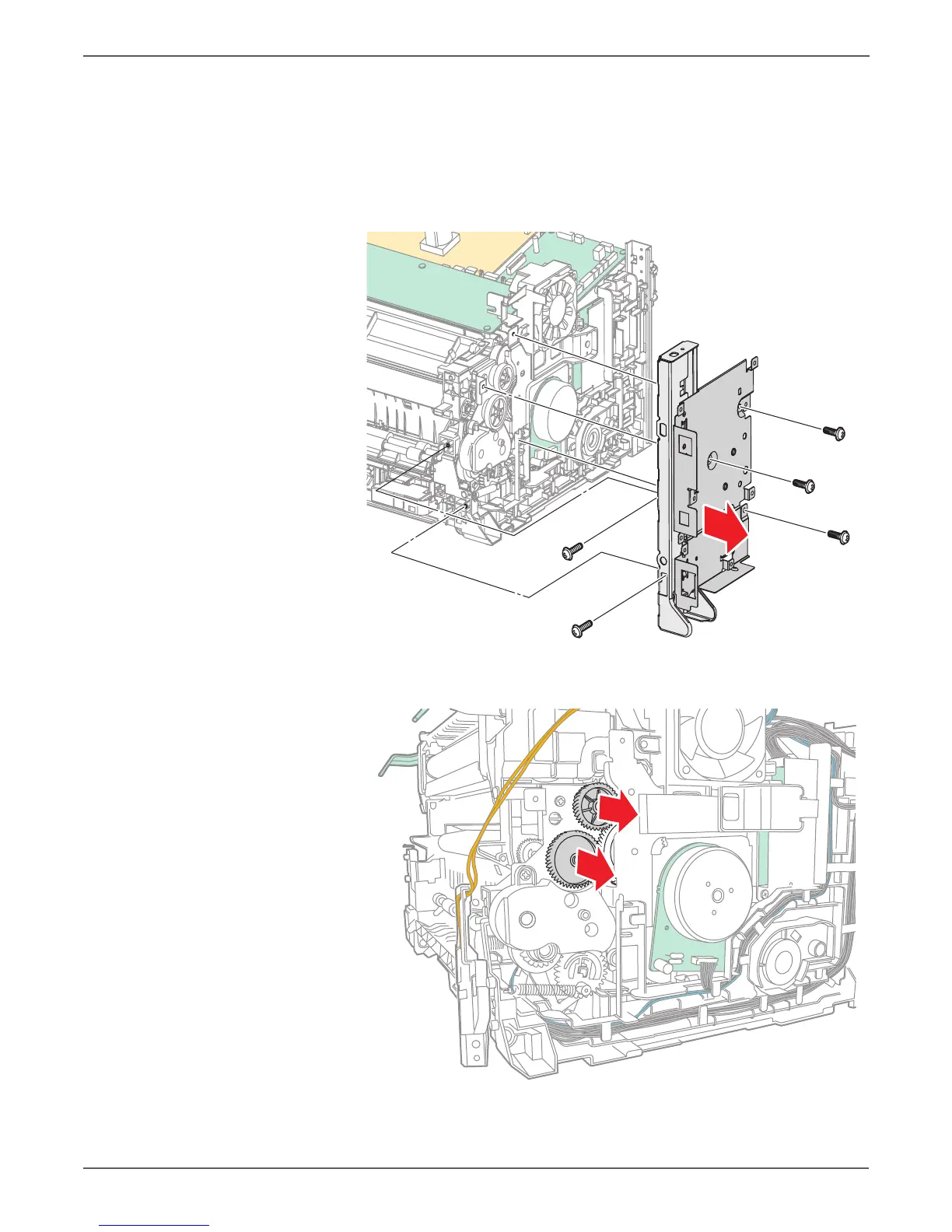

Remove 5 screws (silver, M3, 6 mm), and remove the IP Board Plate from
the printer.
To gain access to the lower screw on the face of the IP Board plate,
unhook the Main Paper Tray Harness Guide from the IP Board plate.
10. Remove the F3 Gear and the PH3 Gear.
To Next Page
