8-92 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
9. This step varies depending on the model of the printer.

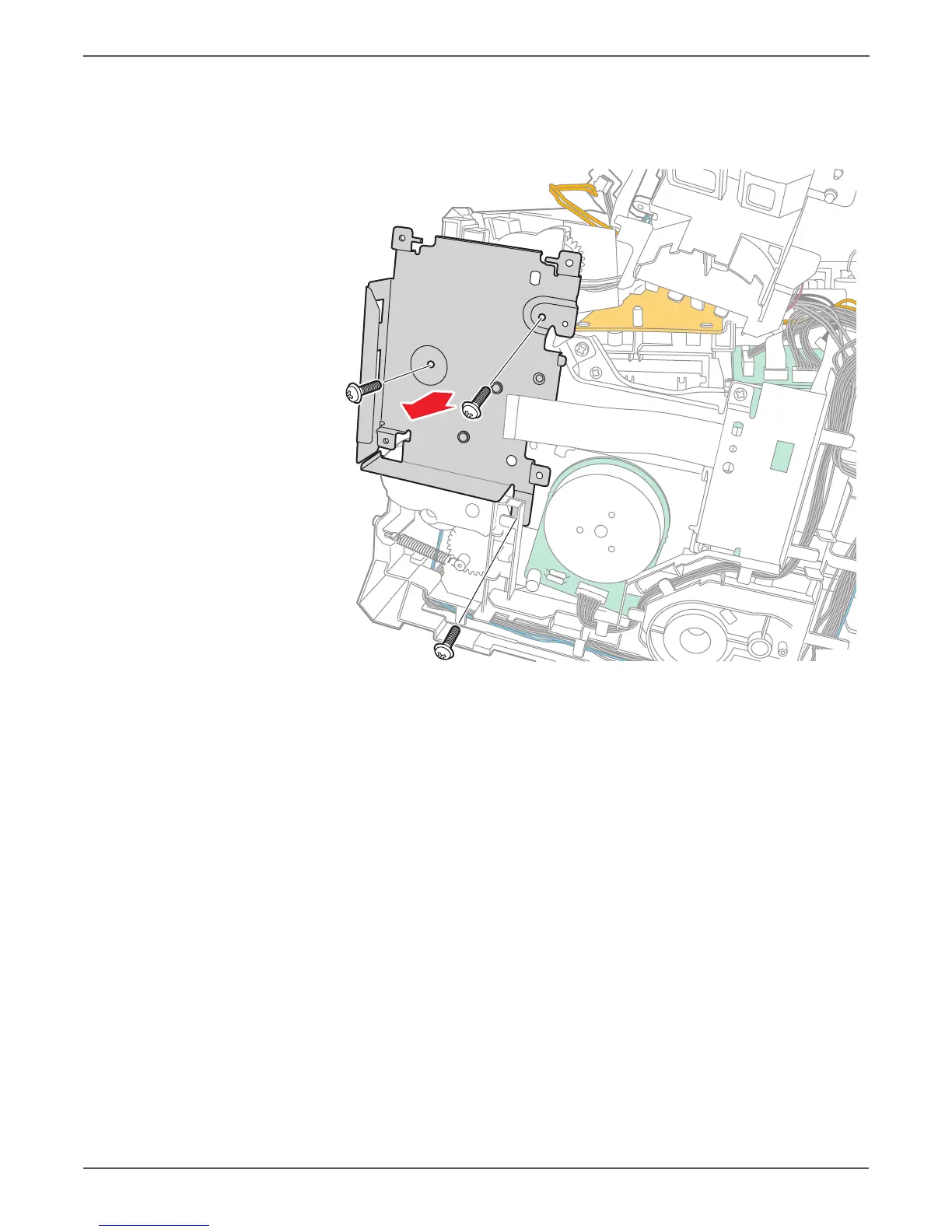

• Phaser 6000/6010: Remove the 3 screws (silver, M3, 6 mm), and remove
the IP Board Plate from the printer.
To Next Page
