Xerox PHASER 6010 Service Manual

8-96 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly
• WorkCentre 6015 MFP: Remove the Rear Cover (page 8-24).

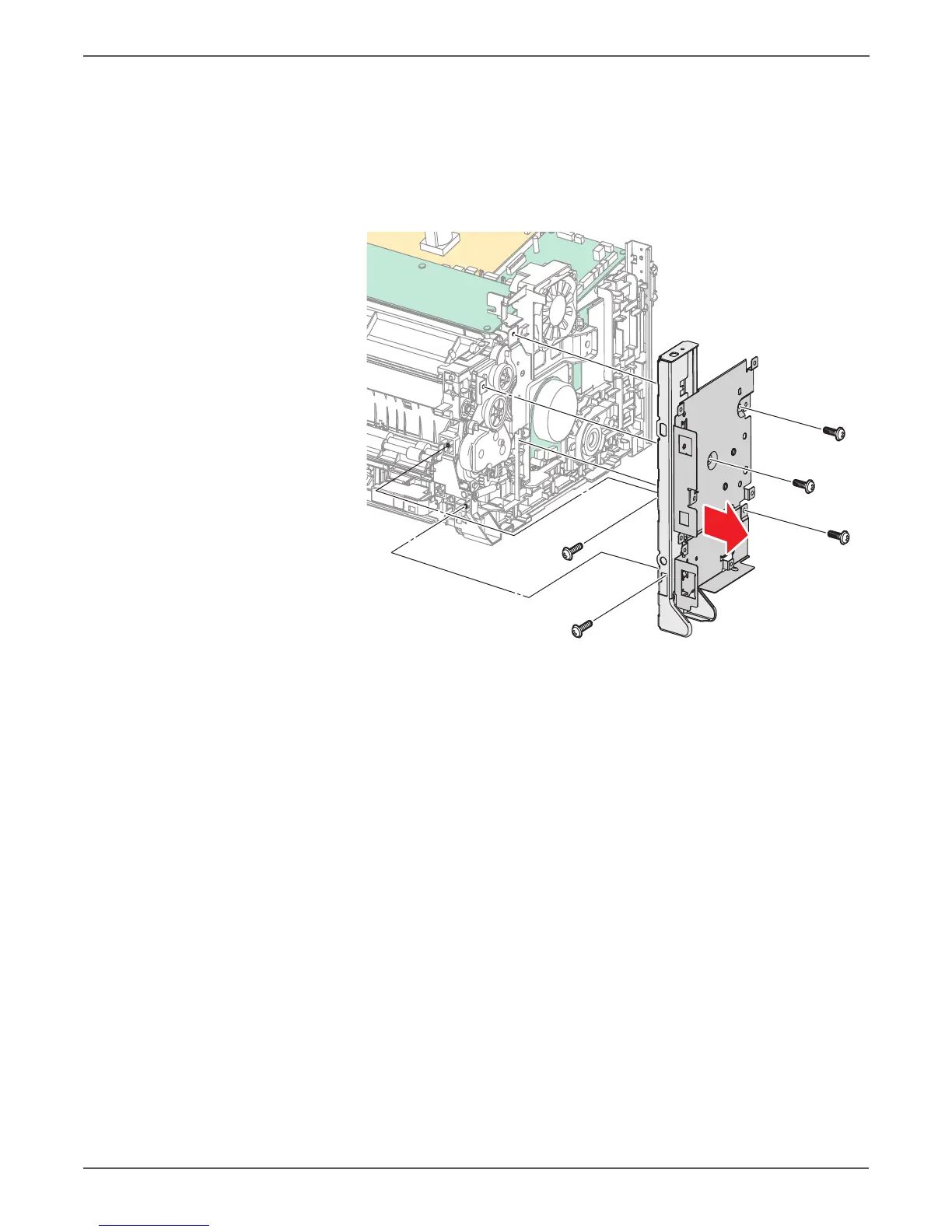

Remove 5 screws (silver, M3, 6 mm), and remove the IP Board Plate from
the printer.
Note
To gain access to the lower screw on the face of the IP Board plate,
unhook the Main Paper Tray Harness Guide from the IP Board plate.
8. Remove the Feed Drive Assembly (page 8-91).
9. Remove the LED Driver Board (page 8-107).
10. Remove the Main Drive Assembly (page 8-82).
11. WorkCentre 6015 MFP: Loosen the cables enough to move the Main Paper
Tray Harness Guide away from the printer.
s6015-031
