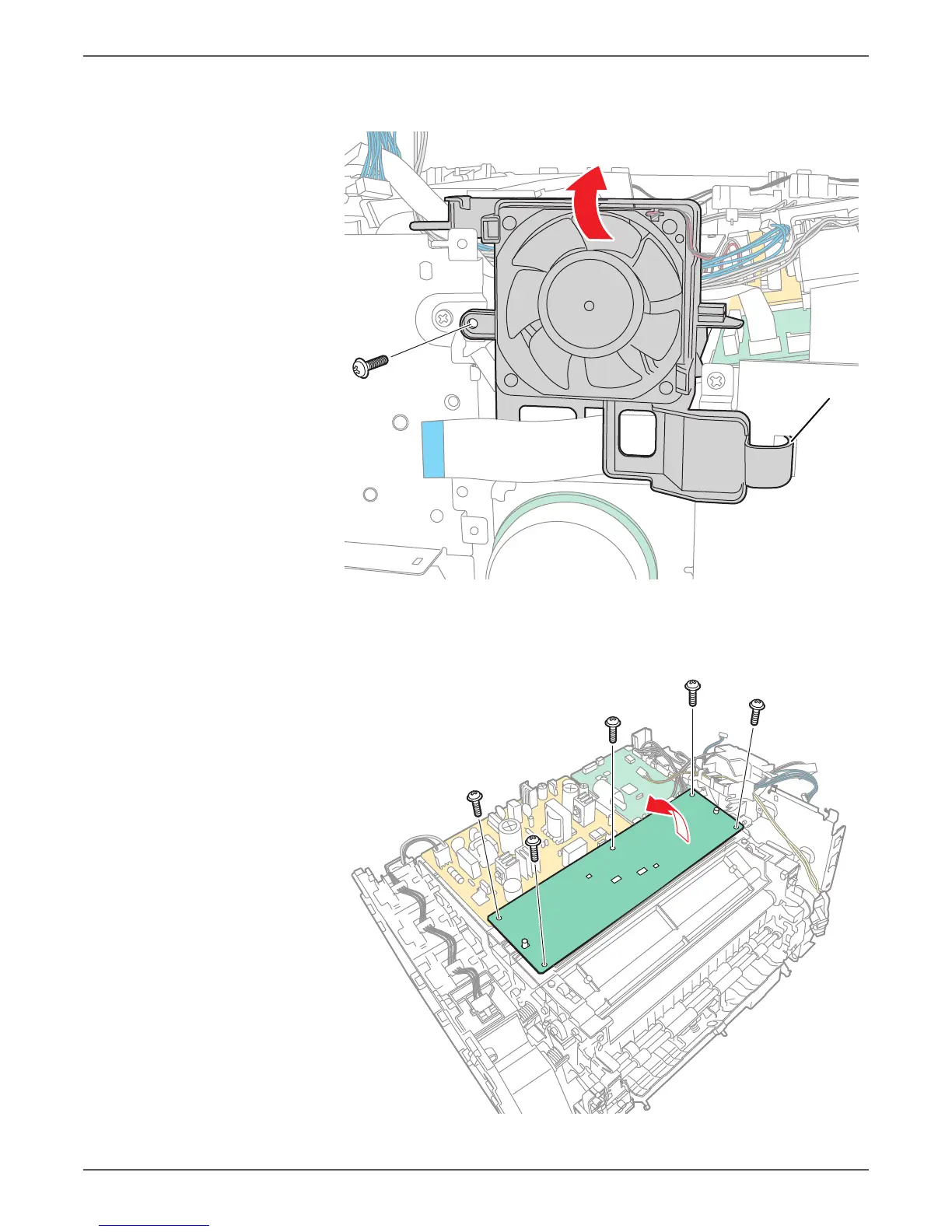

10. Remove 1 screw (silver, metal, 6mm) that secures the fan shroud, release the
fan shroud clip, and move the Fan away from the chassis.
11. Unlace the HVPS wiring from the harness guide.
12. Disconnect P/J210, and remove 5 screws (silver, tap, 8mm).
13. Lift the side of the board closest to the fan first, and remove the HVPS.
s6000-213
Latch
s6000-210

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
