2-8 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation
Development
The development process makes a visible image appear on the drum surface by
electrically attracting toner particles to the electrostatic latent image. This process
is performed in parallel for Yellow, Magenta, Cyan, and Black color independently.
Toner Suppl y

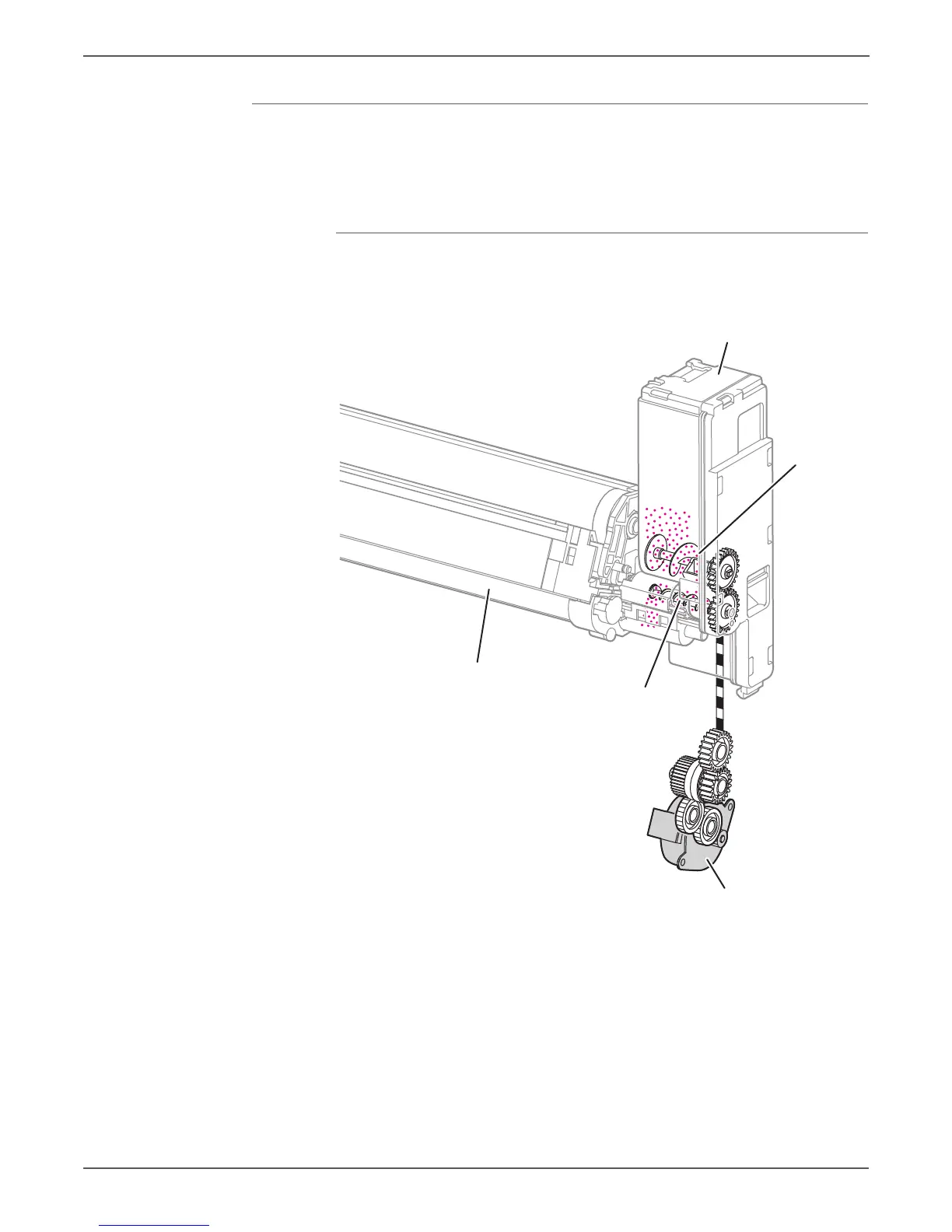

The toner in the Toner Cartridge is fed into the imaging unit by an auger. The
auger is driven by the Toner Motor.
s6000-058
Toner Cartridge
Auger
Auger
Imaging Unit
Toner Motor
