Xerox PHASER 6010 Service Manual

2-20 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Theory of Operation

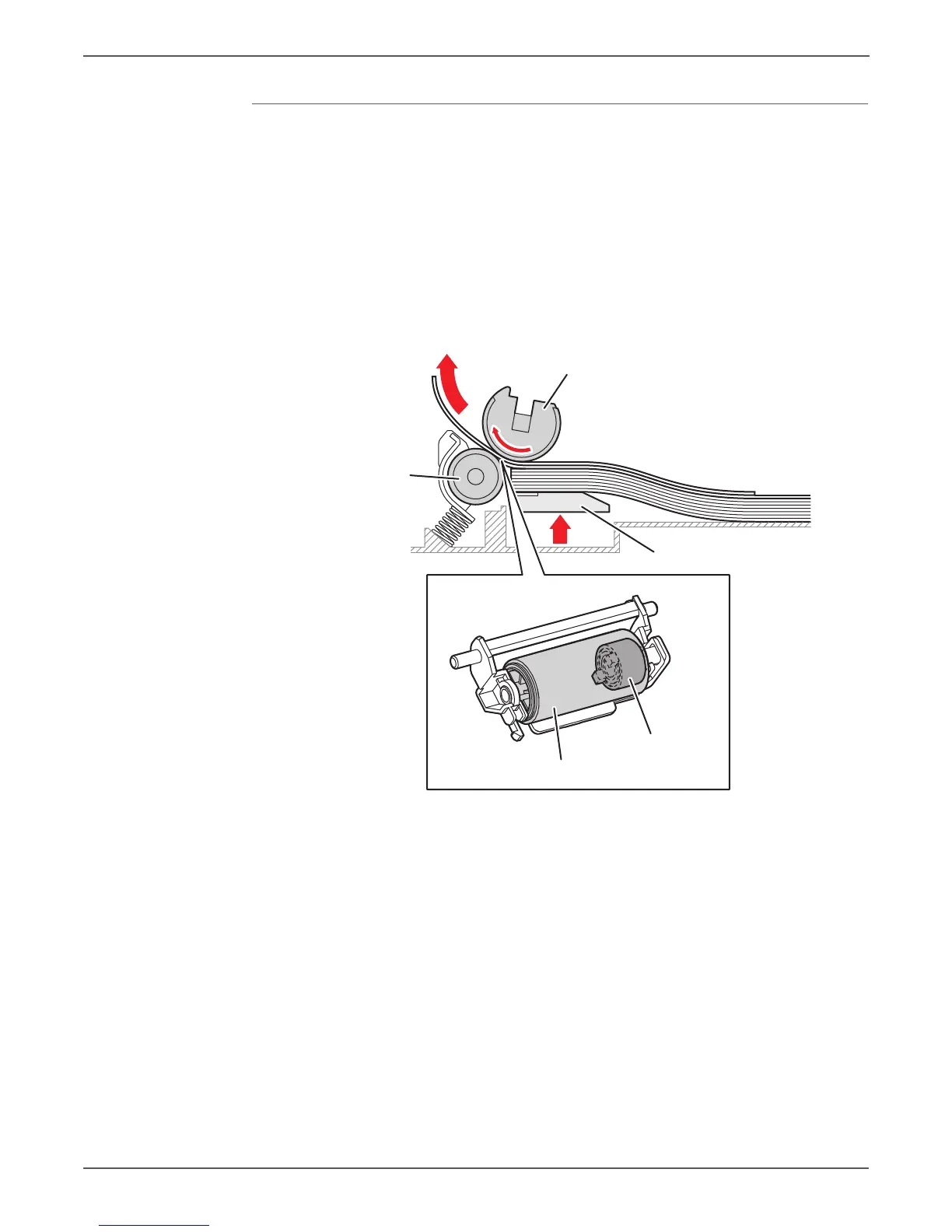

Multiple Sheet Feed Prevention
The sheets in the tray are occasionally stuck together along the edges. The stuck
sheets cause a multiple sheet feed or a jam. The sheets are fed by the Feed Roller
to a position between the Feed Roller and the Separator Pad. Normally, when only
one sheet is fed, both the Feed Roller and Separator Pad rotate to allow the sheet
to pass. However, when two sheets are fed concurrently, only the Feed Roller
rotates and the Separator Pad is locked thereby allowing the upper sheet to
separate from the lower sheet that is stopped by the friction with the Separator
Pad at rest.
The Separator Pad is pushed toward the Feed Roller by spring pressure, and is
controlled by the torque limiter (Friction Clutch) with which it is coupled.
s6000-082
Feed Roller
Separator
Roller
Bottom Plate Assembly
Separator Roller
Friction Clutch

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
