Phaser 6000/6010 and WC 6015 MFP Xerox Internal Use Only 2-43
Theory of Operation

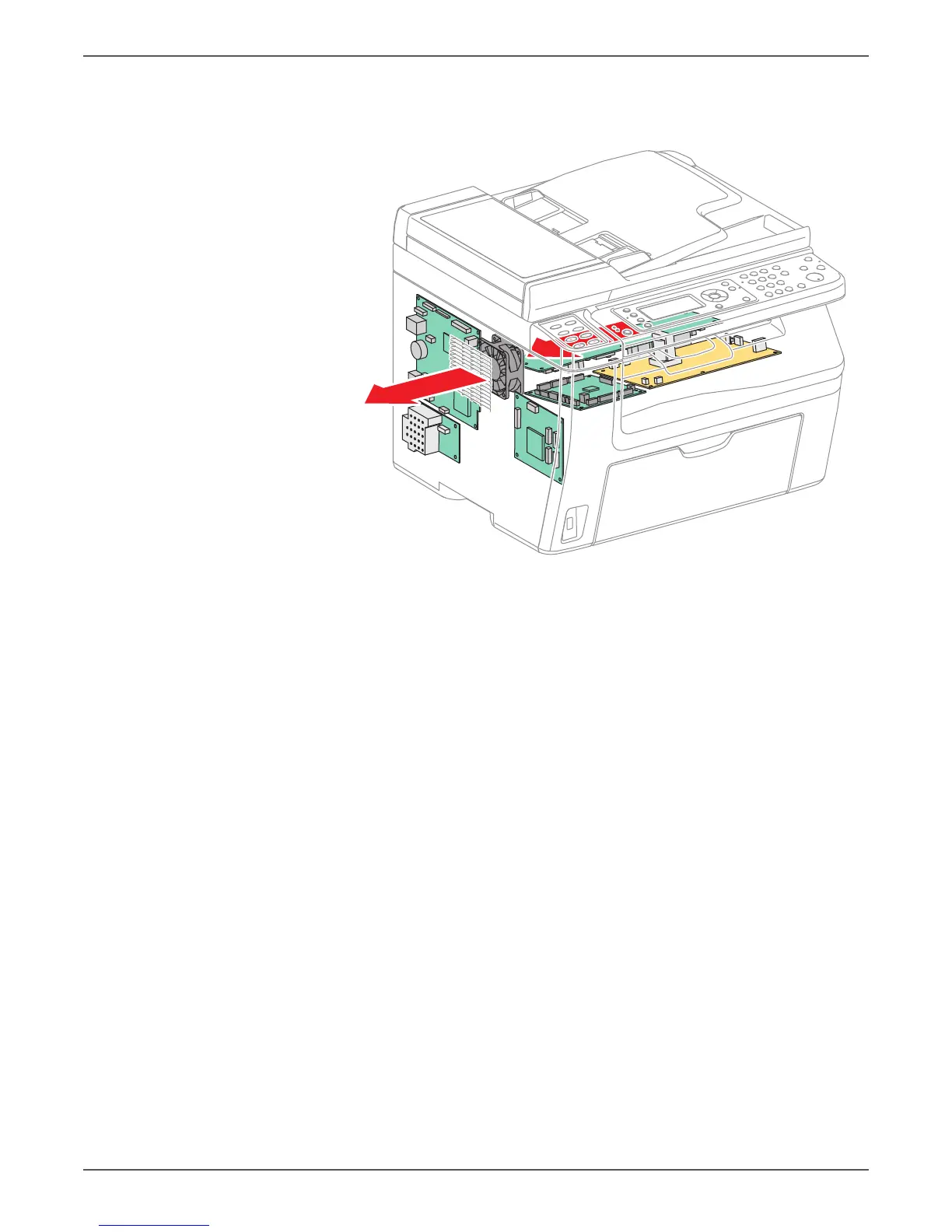

•Switches
•Power Switch
Turns on/off the AC power to the printer.
•Rear Interlock Switch
Detects Rear Door position. Interrupts DC power to the printer (+24VDC)
when the Rear Door is opened.
•LVPS
Supplies the AC power from the power supply to the heater section of the
Fuser and generates stable low DC voltage to be used by the logic circuits and
other components.
•HVPS
Supplies high voltage to the BCRs and the magnet rollers for each color.
•MCU Board
Controls the print operation based on communication with the print controller
and on the information from the sensors or switches.
•IP Board
The Image Processor Board is the print controller. The IP Board converts print
data received at the USB or Ethernet port to image data suitable for the LED
Driver Board.
•LED Driver Board
The LED Driver Board generates image signals for the LPHs.
s6015-002
