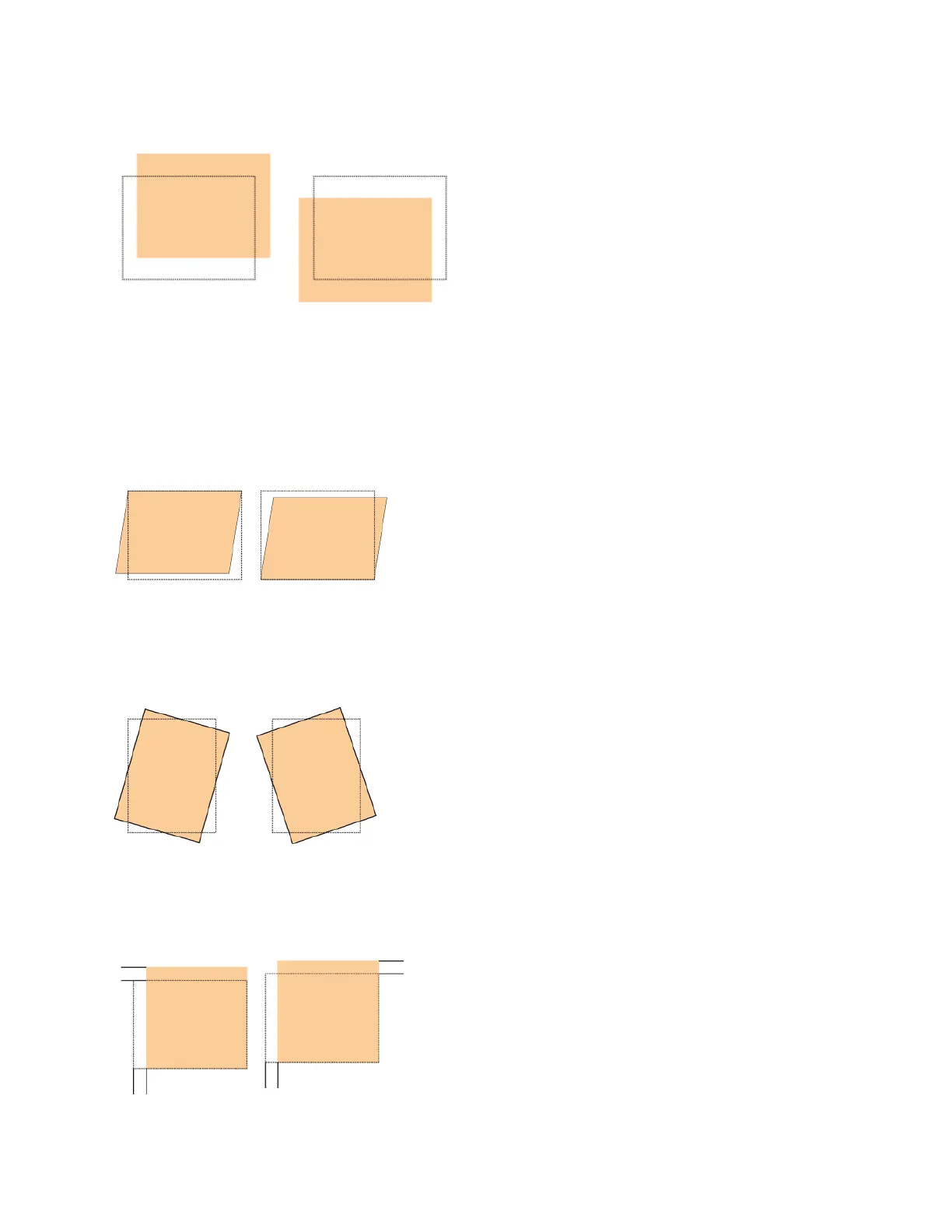

Registration
Registration includes the following:
• Lead Registration: Use this option to adjust the lead edge of the image for side 1 and side 2
registration.
• Side Registration: Use this option to adjust the side edge of the image for side 1 and side 2
registration.
Perpendicularity
Use this when the image is straight on the page, but the corners are slanted, not at right (90 degree)
angles to each other. This option adjusts the image digitally on the drum so that it aligns with the
paper for both side 1 and side 2.
Skew
Use this when the entire image on the page is slanted and not straight. This option adjusts the paper
so that the image for side 1 and side 2 are not skewed but aligned with each other.
Magnification
