Xerox Versant 4100 Press - Clearing Paper Jams from HCS Area E2

Clearing Paper Jams from HCS Area E2

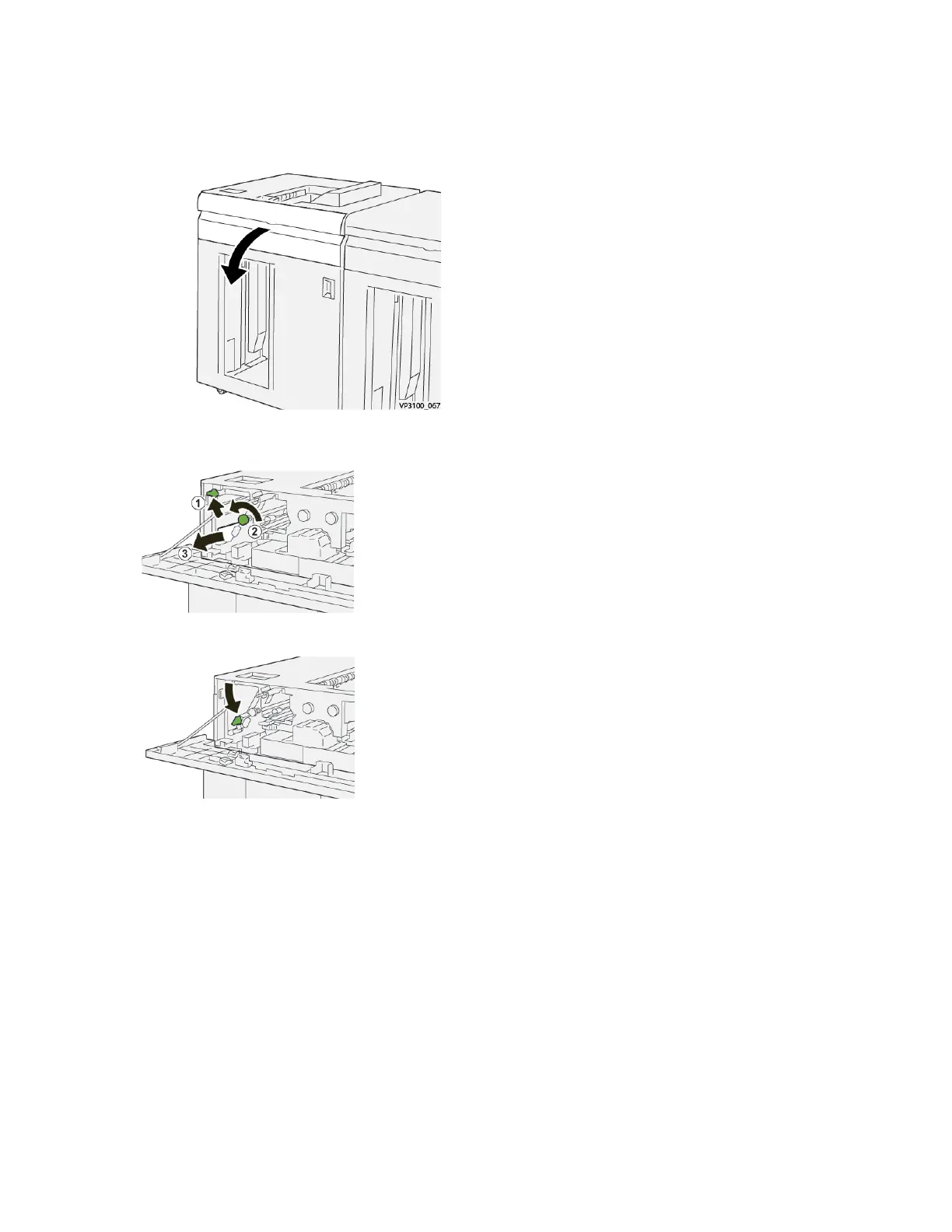

1. Open the HCS top cover.
2. Open lever 1b upward (1) and rotate knob 1a counterclockwise (2) and remove jammed papers
(3).
3. Return lever 1b to its original position.
4. Close the HCS top cover.
5. If the press indicates there are additional paper jams, follow the instructions to clear the paper
and to resume printing.
