Xerox Versant 4100 Press - Clearing Paper Jams from Trimmer Area E7

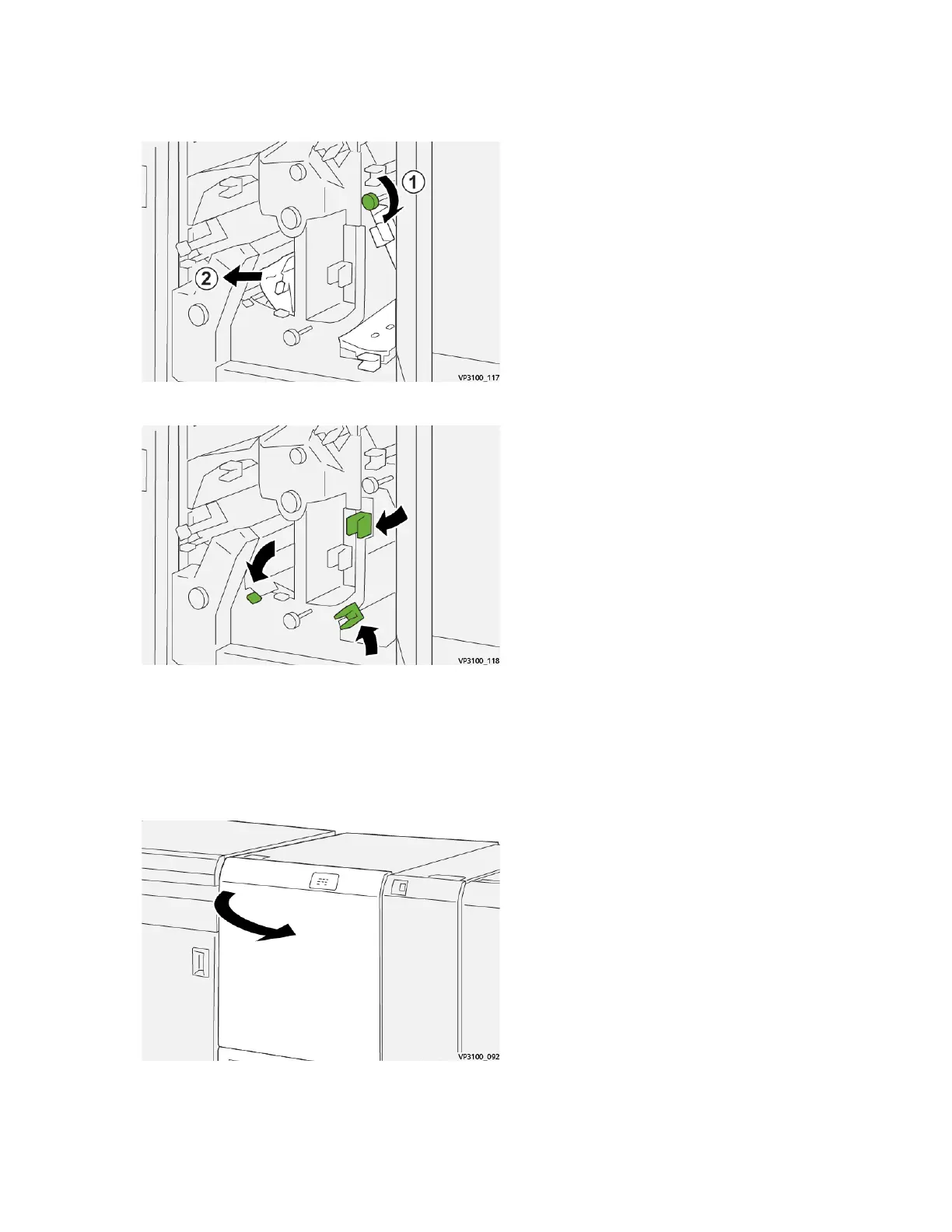

5. Rotate knob 3c clockwise (1) and remove jammed paper (2).
6. Return levers 3a, 4b and 4c to their original positions.
7. Close the trimmer upper cover.
8. If the press indicates there are additional paper jams, follow the instructions to clear the paper
and to resume printing.
Clearing Paper Jams from Trimmer Area E7
1. Open the trimmer upper cover.
384
Xerox
®
Versant
®
4100 Press
User Documentation
Troubleshooting
