crease types are available. For information, refer to Crease Types.
OOppttiioonnaall TTrriimmmmiinngg wwiitthh FFoolldd aanndd CCrreeaassee AAddjjuussttmmeenntt PPrrooffiilleess
The Trim and Crease selections are available only when the press is connected to the following
optional devices:
• Production Ready Booklet Maker Finisher
• Crease and Two-Sided Trimmer
Tip: For the Crease and Two-Sided Trimmer device, the trim selection is different from the
trimming that occurs with the SquareFold
®
Trimmer module. For more information, refer to the
Crease and Two-Sided Trimmer.
Crease and Trim Options
The Crease and Trim options are only available with the following Fold options:
• Bi-Fold Single Sheet
• Bi-Fold Multiple Sheet
• Bi-Fold Multiple Sheets Stapled
Trim Selection
The optional Trim selection cuts the top and bottom of the media as it passes through the optional
trimmer module. The trimmed media is sent to the optional Production Ready Booklet Maker Finisher
for bi-folding.

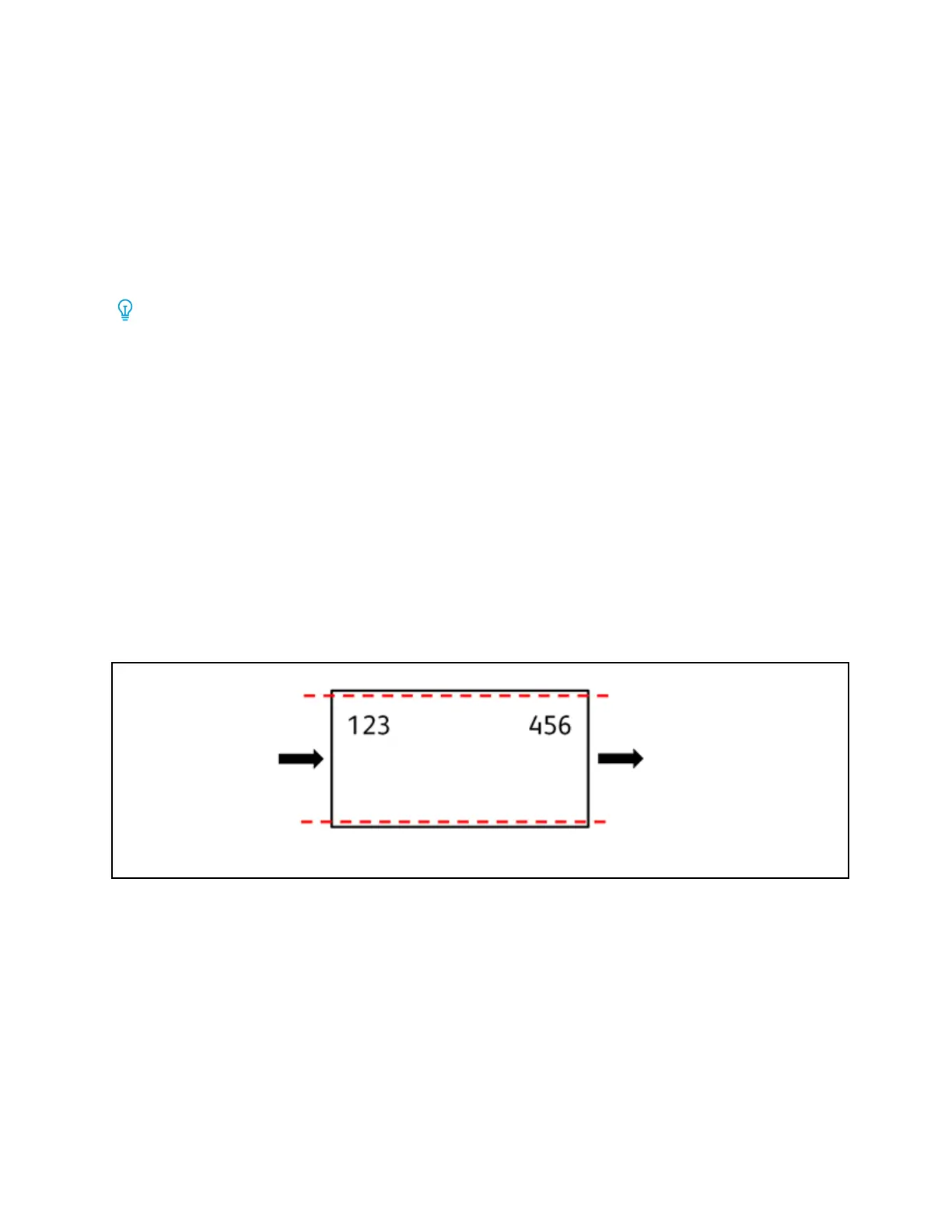

Feed direction from
press
Red dotted lines represent trimming of the media.
Output to optional
booklet maker finisher
Crease Selection
The optional Crease selection applies the Crease-Bi-Fold Single Sheet to the corresponding Bi-Fold
Full Adjust test print.
FFoolldd AAddjjuussttmmeenntt PPrroocceedduurreess
Fold Adjustment procedures:
