Z-Fold Half-Sheet Adjustment Procedure
Note: The C and Z Fold Adjustments are available with a C/Z Folder device.
1. From the PredictPrint Media Manager main window, select Profiles.
The Profiles window appears.
2. Select the Fold Adjustment tab.
The Fold Adjustment option appears.
3. Select either the New or Edit button.
If you are editing an existing fold adjustment, select the desired profile from the list and then
select the Edit button.
The [New or Existing] Profile Properties window opens.
4. Type in a new name, or if desired, edit the existing name.
It is recommend that you use a name such as Z-Fold_Half-Sheet or something that indicates the
fold type.
5. From the drop-down menu, select the Z-Fold Half Sheet for the Fold Type.
6. Select desired settings such as Size and Weight.
7. Select the Test Print button.
The Fold Adjustment - Test Print window displays.
8. Select the desired tray, and then select the Start button.
Upon completion of the test prints, the [New or Existing] Profile Properties window reopens.
Note: This screen varies depending on the selected Fold Type.
9. Obtain the printed samples from the output area of the press.

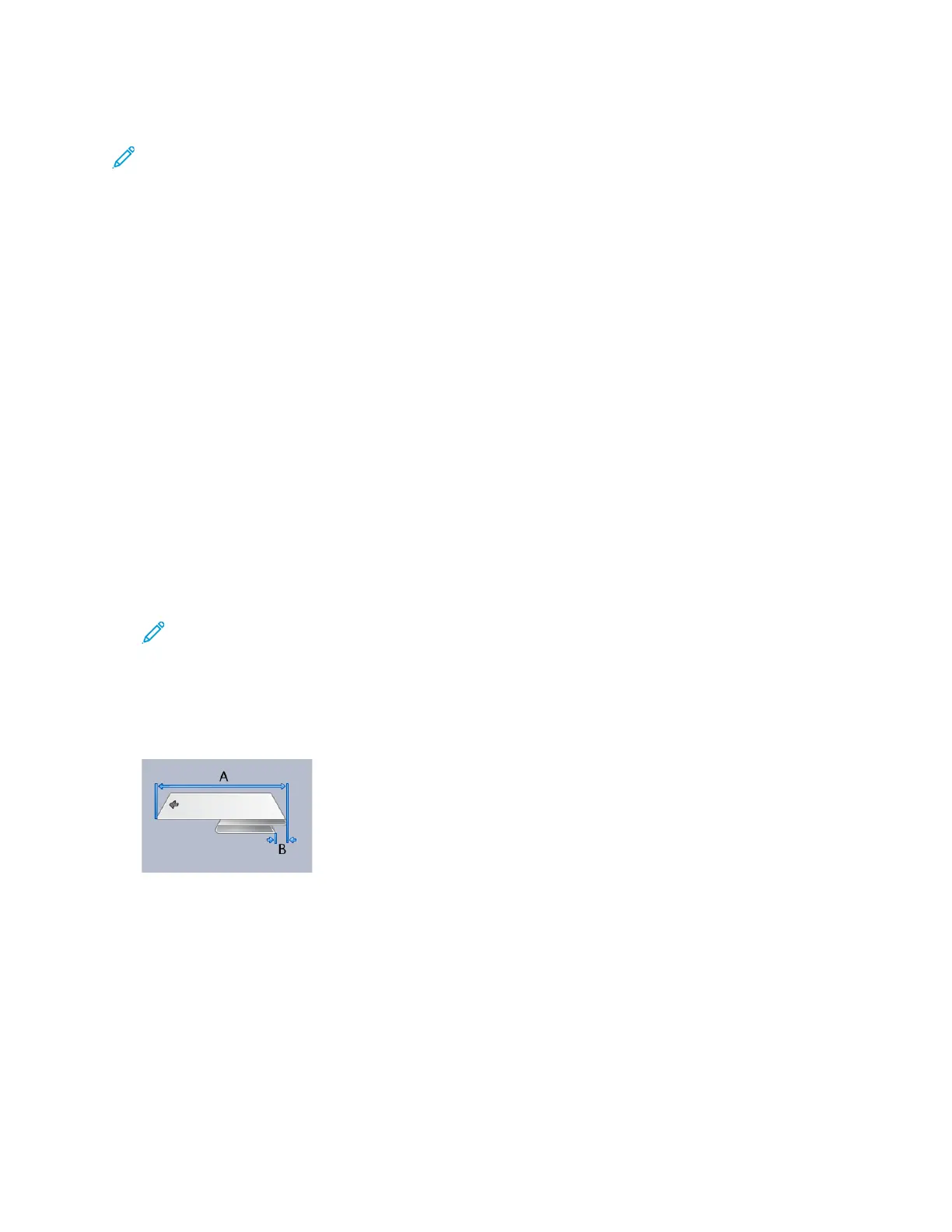

10. Measure the sample output and record both Z-Fold, Half-Sheet positions on a sheet of paper.
11. Use the Up and Down Arrow buttons and enter the measurement values that you obtained
during the previous step in the A Length window and the B Length window.
12. Run more test prints to ensure that the fold positions are now correct.
a. Select the Test Print button.
b. Select the desired tray.
c. Select the Start button.
d. Obtain the printed samples from the output area of the press.
e. Measure the sample output and record both fold positions on a sheet of paper.
f. Enter the measurement A Length and B Length values.
g. Repeat the previous steps until the desired output is achieved.
