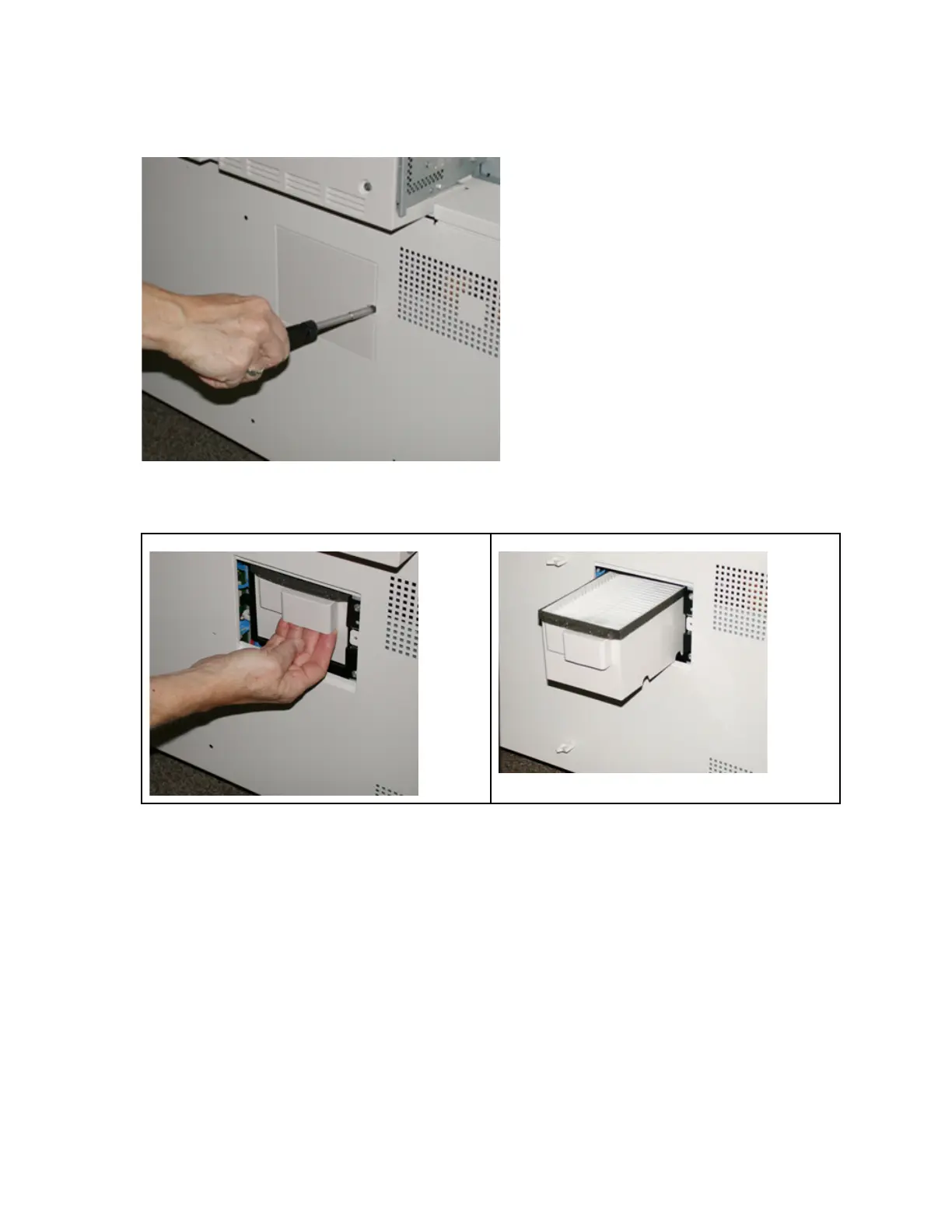

2. Us the Torx driver to remove the screw on the right side of the cover by turning the screw
counterclockwise.
3. Pull out and remove the suction filter cover.
4. Grasp the handle of the filter box and pull straight out.
5. Remove the suction filter from the box.
6. Place the new suction filter into the box and push the filter box in until it stops and is flush with
the press.
7. Place the cover onto the filter box area.
a. Make sure to first insert the left two tabs of the cover into the left side of the box area.
b. Then push the entire cover flush to the press.
8. Insert the Torx driver with the screw attached into the cover and turn clockwise to tighten.
9. Log in as the Administrator or ask the Administrator to perform the following steps to reset the
High Frequency Service Item (HFSI) count to zero (0), which indicates a new filter has been
installed.
a. At the control panel, press the Tools button.
b. Select the Tools icon.
