CAN/LIN Triggering and Serial Decode 10
InfiniiVision 7000B Series Oscilloscopes User’s Guide 263
• Differential — The CAN differential bus signals connected to an analog
source channel using a differential probe. Connect the probe’s
positive lead to the dominant- low CAN signal (CAN_L) and connect
the negative lead to the dominant- high CAN signal (CAN_H).
7 Repeatedly press and release the Baud softkey to set the CAN signal
baud rate to match your CAN bus signal.
The CAN baud rate can be set to:
The default baud rate is 1 Mb/s
If the desired baud rate is not shown in the table, select User Defined.
You can set the CAN baud rate from 10.0 kb/s to 1.000 Mb/s in
increments of 100 b/s. Press the User Baud softkey and rotate the Entry
knob to make your selection.

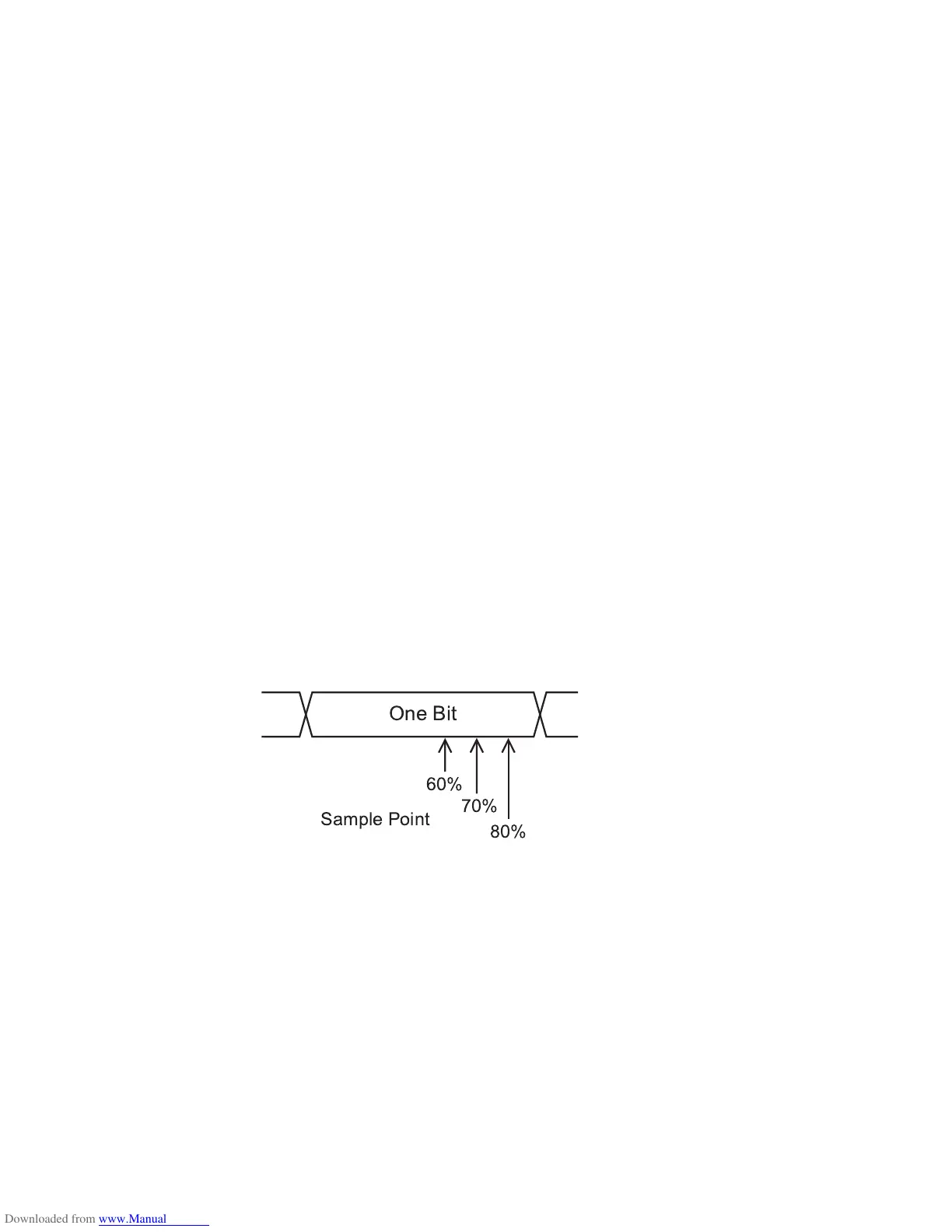

8 Repeatedly press and release the Smpl Pt softkey to select the point
between phase segments 1 and 2 where the state of the bus is
measured. This controls the point within the bit’s time where the bit
value is captured.
10 kb/s 50 kb/s 100 kb/s 500 kb/s
20 kb/s 62.5 kb/s 125 kb/s 800 kb/s
33.3 kb/s 83.3 kb/s 250 kb/s 1 Mb/s
User Defined
