Serial Decode/Lister 9
InfiniiVision 7000B Series Oscilloscopes User’s Guide 257
Lister

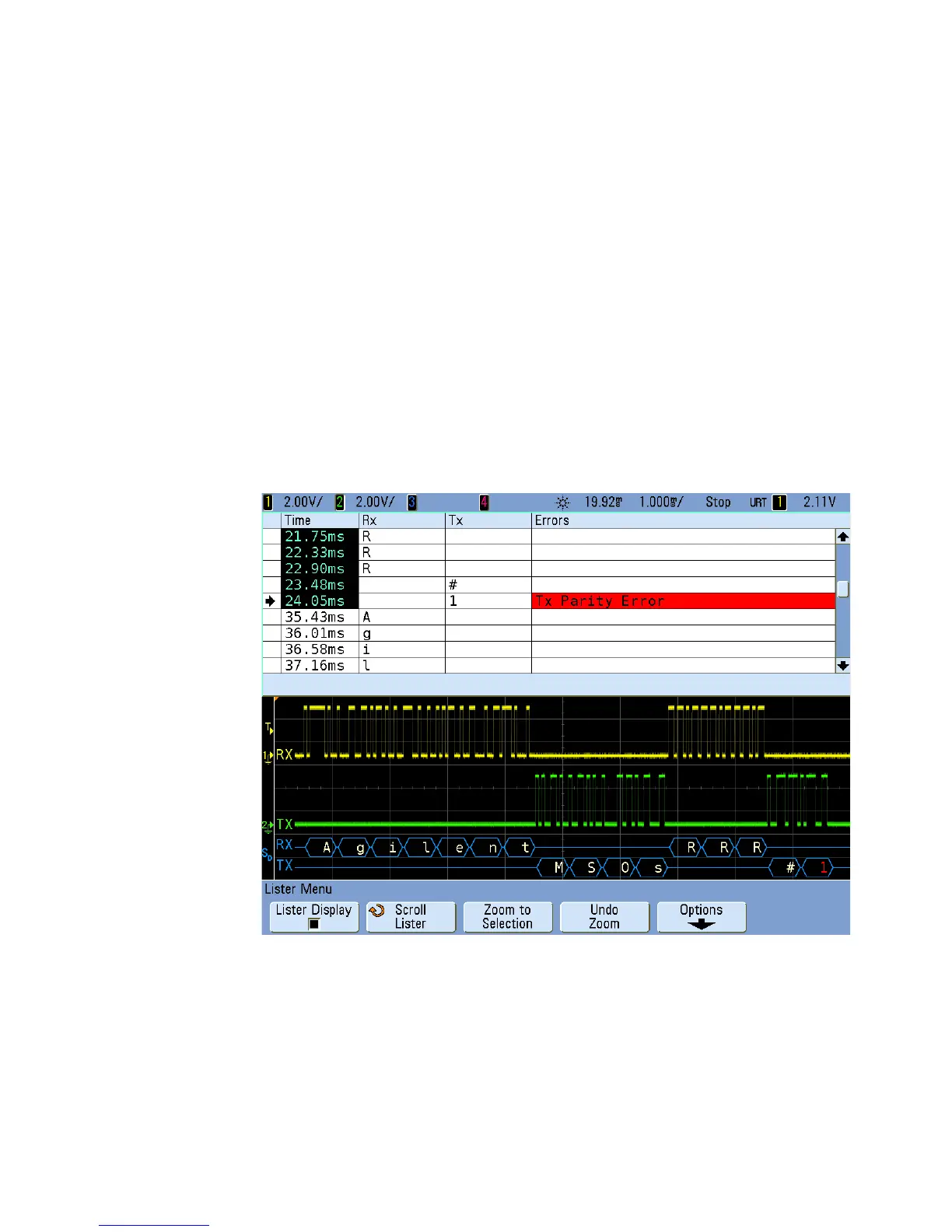

Lister is a powerful tool for investigating protocol failures. You can use
Lister to view large amounts of packet level serial data in a tabular
format, including time tags and specific decoded values. After pressing the
[Single] key, you can rotate the Entry knob to select an event and press
the Zoom to Selection softkey to jump to the event.
To use the Lister:
1 Set up trigger and decode on the serial data signals to be analyzed.
2 Press [Serial] > Lister.
3 Press Lister Display to enable the display.
Before you can select a row or navigate through the Lister data,
oscilloscope acquisitions must be stopped.
4 Press the [Single] key (in the Run Control group on the front panel) to
stop the acquisition.
