Serial Decode/Lister 9
InfiniiVision 7000B Series Oscilloscopes User’s Guide 259
Searching Lister Data

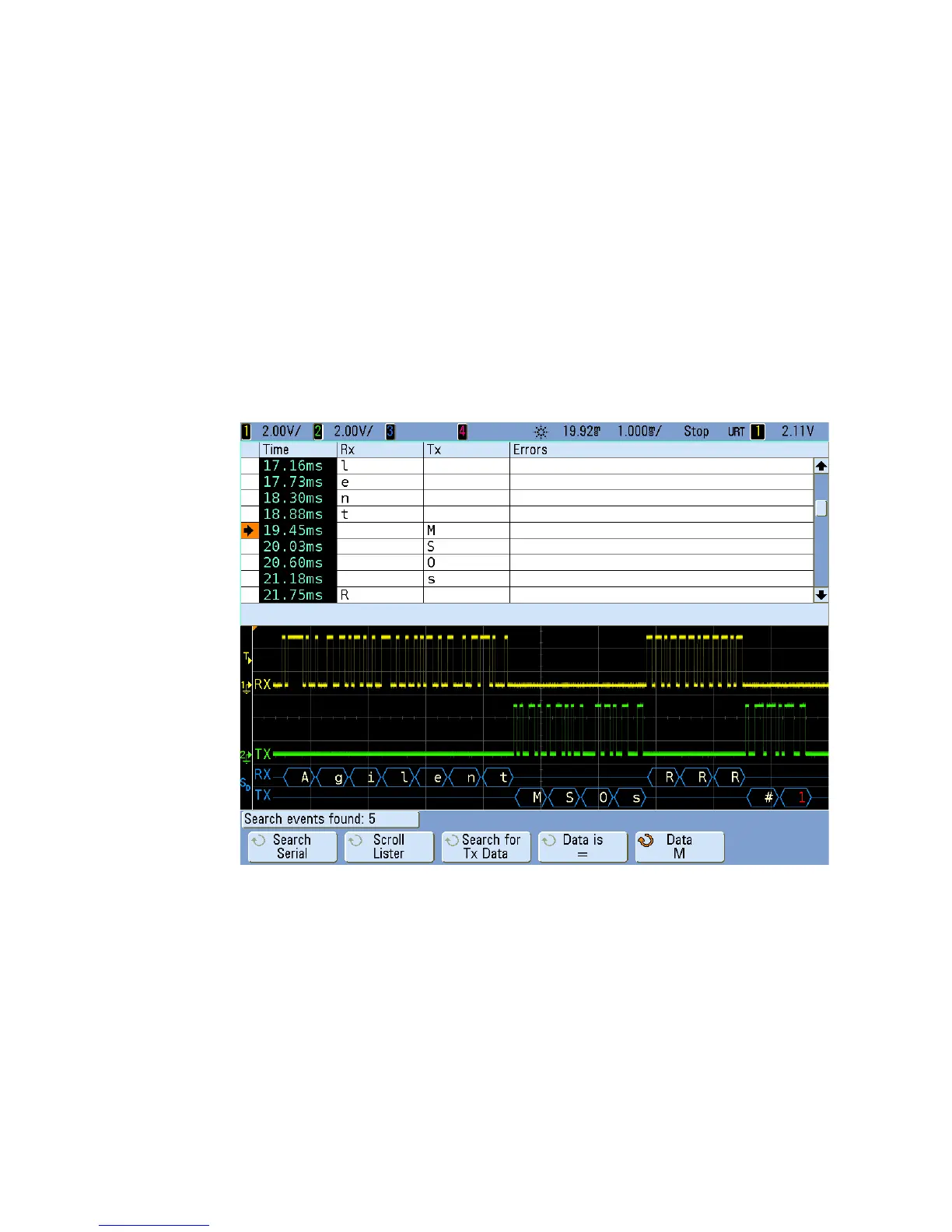

When serial decode is enabled, you can use the [Search] key to find and
place marks on rows in the Lister.
The Search for softkey lets you specify events to find. It is similar to
specifying protocol triggers.
Events found are marked in orange in the far left Lister column. The total
number of events found is displayed above the softkeys.
Each serial decode option lets you find protocol- specific headers, data,
errors, etc. See:
• “Searching for CAN Data in the Lister” on page 270 if you have Option
AMS (N5424A).
• “Searching for FlexRay Data in the Lister” on page 322 if you have
Option FLX (N5432C).
