Interpreting FlexRay Frame Decode

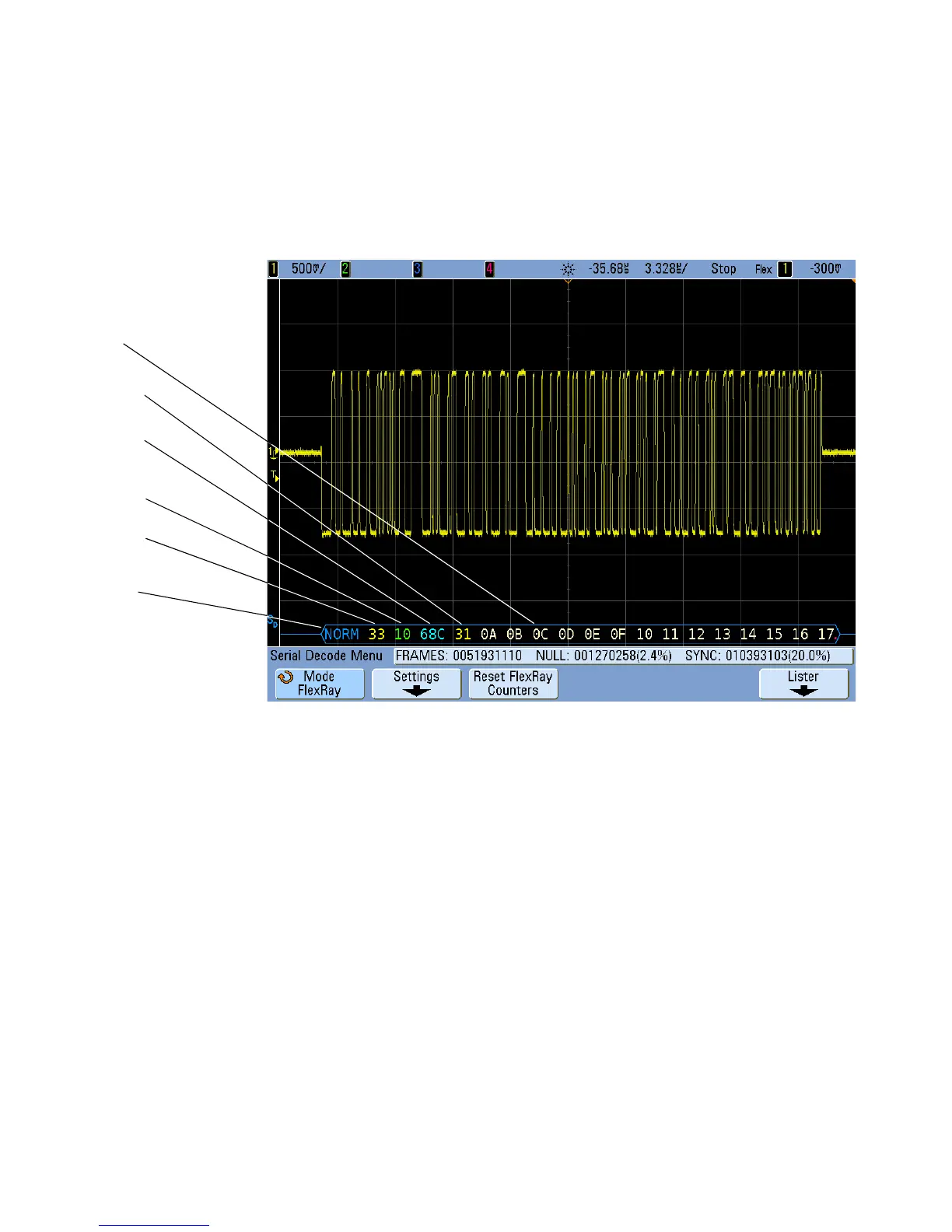

The FlexRay decode display shows frame decoding.
• Frame type (NORM, SYNC, SUP, NULL in blue).
• Frame ID (decimal digits in yellow).
• Payload- length (decimal number of words in green).
• Header CRC (hex digits in blue plus red HCRC error message if
invalid).
• Cycle number (decimal digits in yellow).
• Data bytes (HEX digits in white).
• Frame CRC (hex digits in blue plus red FCRC error message if invalid).
• Frame/coding errors (specific error symbol in red).
Frame ID
(yellow)
Payload Length
(green)
Frame Type
(blue)
Header CRC
(blue)
Cycle
Number
Payload
data
