Measurements and Math Functions 5
InfiniiVision 7000B Series Oscilloscopes User’s Guide 157

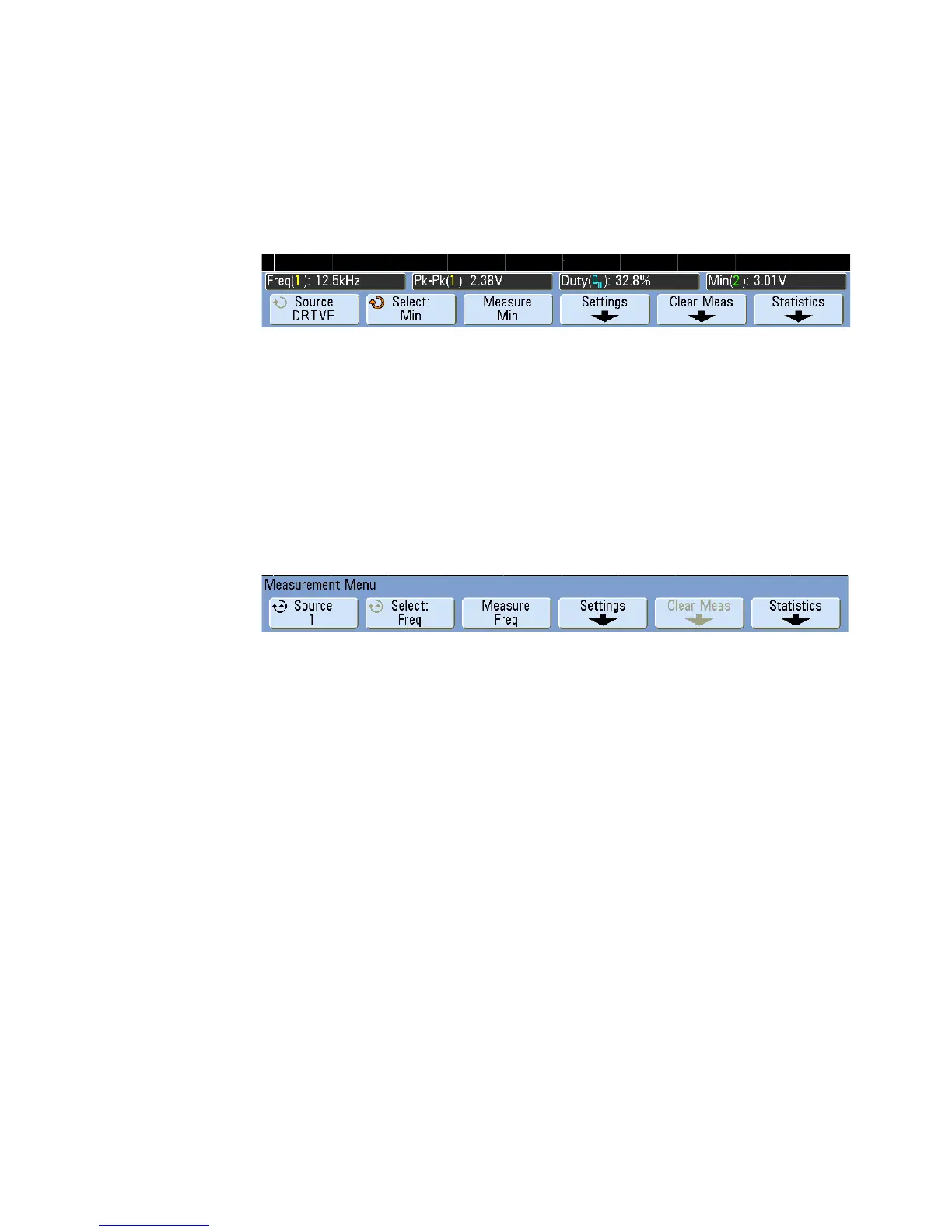

3 Press the Select softkey then rotate the Entry knob to select a
measurement to be made.
4 The Settings softkey will be available to make additional measurement
settings on some measurements.
5 Press the Measure softkey to make the measurement. (By default,
measurement statistics are displayed. See page 157.)
6 To turn off measurements, press the [Meas] key again. The key will no
longer be illuminated and the measurements will be erased from the
display.
7 To stop making one or more measurements, press the Clear Meas softkey
and choose the measurement to clear, or press Clear All.
After all measurements have been cleared, when [Meas] is pressed
again, the default measurements will be Frequency and Peak- Peak.
Measurements available only on analog channels
The following measurements can only be made on analog source channels:
rise time, fall time, X at max Y, Xat min Y, phase, delay, average,
amplitude, base, maximum, minimum, peak- to- peak, ratio, rms, std.
deviation, and top.
Measurement Statistics
Press the [Meas] key to enter the Measurement Menu. By default, statistics
are displayed, and frequency and voltage are measured on channel 1.
Select the measurements you desire for the channels you are using (see
page 154).
