5 Measurements and Math Functions
158 InfiniiVision 7000B Series Oscilloscopes User’s Guide

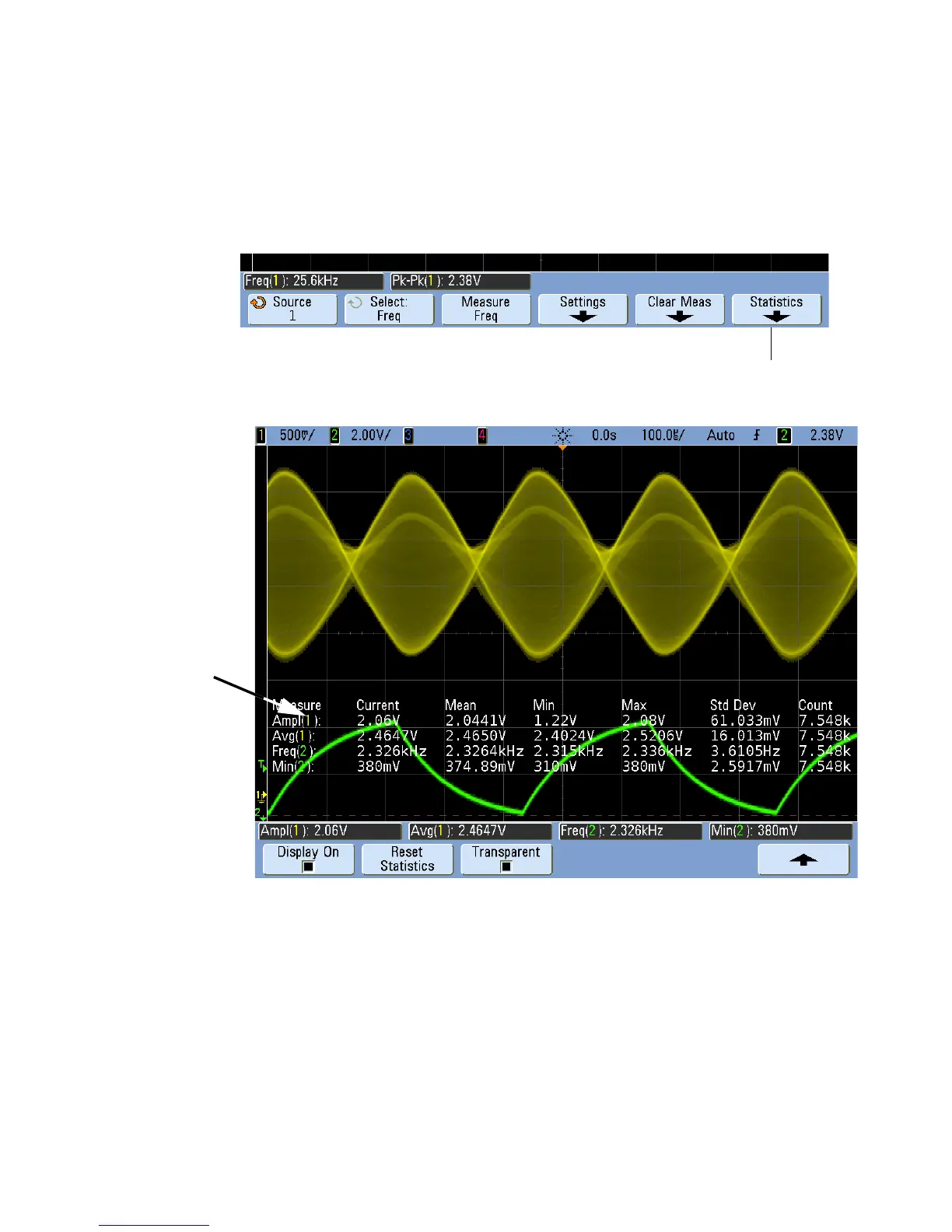

From the Measurement Menu, press the Statistics softkey to enter the
Statistics Menu.
The following statistics are shown: Name of the measurement, current
measured value, mean, minimum measured value, maximum measured
value, standard deviation, and the number of times the measurement has
been made (count). Statistics are based on the total number of captured
waveforms (count).
Source channel
(color coded)
